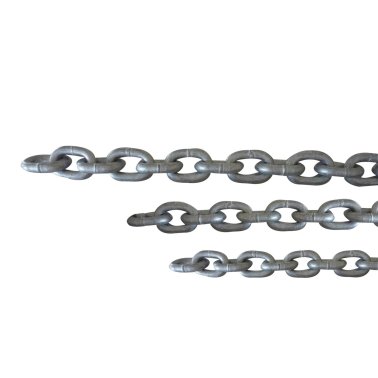

Chaîneries Limousines Hot-Dip Galvanized Calibrated Anchor Chain G40 ISO 4565 / DIN 766

ID 1382889

$ 551.90

1-2 weeks delivery time

Diameter, mm:

Length, m:

The Chaîneries Limousines by Pewag G40 calibrated anchor chain is manufactured from hot-dip galvanized steel for marine anchoring and windlass applications. Chains from 6 mm to 8 mm comply with ISO 4565 and DIN 766 standards, while 10 mm to 14 mm versions comply with ISO 4565. Available in 30 m, 60 m and 100 m drums, the chain range offers working loads from 1,150 kg to 6,270 kg and breaking loads from 2,300 kg to 12,540 kg, making it suitable for recreational and professional marine installations.

Description
Ask a Question

Chaîneries Limousines by Pewag G40 ISO 4565 / DIN 766 Hot-Dip Galvanized Calibrated Anchor Chain – 6-14 mm, 30-100 m Drum

The Chaîneries Limousines by Pewag G40 calibrated anchor chain is designed for marine anchoring systems and anchor windlasses requiring precise chain dimensions and reliable strength. Manufactured from hot-dip galvanized steel, it provides excellent corrosion resistance in seawater while maintaining consistent calibration for smooth operation through gypsies.

The 6 mm and 8 mm versions comply with both ISO 4565 and DIN 766 standards, while the 10 mm, 12 mm and 14 mm chains comply with ISO 4565. The range is supplied in convenient 30 m, 60 m and 100 m drums depending on diameter.

Features

Marine calibrated anchor chain
Manufactured by Chaîneries Limousines by Pewag
Grade G40 steel
Hot-dip galvanized for corrosion resistance
Designed for anchor windlasses and anchoring systems
ISO 4565 calibration
DIN 766 compliance for 6 mm and 8 mm sizes
Available in 30 m, 60 m and 100 m drums
Diameters from 6 mm to 14 mm

Technical Specifications

Diameter	Standard	Outside Width	Pitch	Working Load	Breaking Load	Weight per Meter
6 mm	ISO 4565 / DIN 766	21.6 mm	18.5 mm	1150 kg	2300 kg	0.85 kg/m
8 mm	ISO 4565 / DIN 766	28.8 mm	24 mm	2045 kg	4090 kg	1.70 kg/m
10 mm	ISO 4565	36 mm	30 mm	2500 kg	5000 kg	2.25 kg/m
12 mm	ISO 4565	43.2 mm	36 mm	4605 kg	9210 kg	3.24 kg/m
14 mm	ISO 4565	50.4 mm	42 mm	6270 kg	12540 kg	4.60 kg/m

Available Variants

Diameter	Length	VDM / Reya SKU
6 mm	60 m	MR513216
6 mm	100 m	MR513200
8 mm	30 m	MR513202
8 mm	60 m	MR513204
8 mm	100 m	MR513206
10 mm	60 m	MR511608
10 mm	100 m	MR511610
12 mm	60 m	MR511612
12 mm	100 m	MR511614
14 mm	100 m	MR511616

Applications: Marine anchor windlasses, anchor rodes, permanent mooring systems, commercial and recreational boats, yachts and professional marine installations.
