ID
1382942
$ 530.84
1-2 weeks delivery time
Diameter, mm:
- 3
- 6
Length, m:
- 50

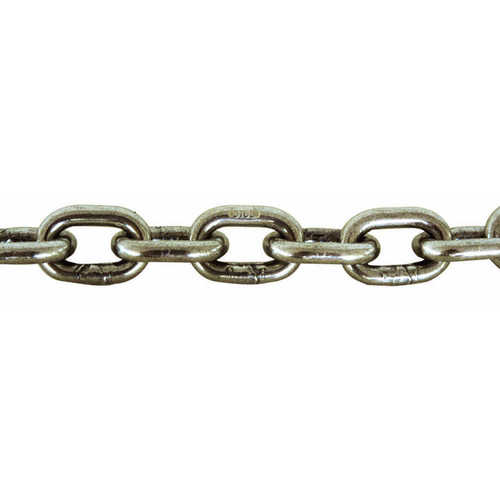

The Plastimo 316L Stainless Steel Calibrated Short Link Chain is designed for anchoring and use with anchor windlasses. Manufactured from AISI 316L stainless steel and compliant with the DIN 766 standard, the chain offers excellent corrosion resistance for marine environments. Available in 3 mm and 6 mm diameters with a 50 m length, the chain provides working loads of 70 kg or 400 kg depending on the selected variant. The 6 mm version has a breaking load of 1,630 kg and is supplied in a plastic drum.
- Description
- Ask a Question
-
Plastimo 316L Stainless Steel Calibrated Short Link Anchor Chain DIN 766 – 3-6 mm, 50 m
The Plastimo 316L Stainless Steel Calibrated Short Link Chain is designed for marine anchoring systems and is suitable for use with anchor windlasses. Manufactured from corrosion-resistant AISI 316L stainless steel, the chain provides long-lasting performance in demanding marine environments while maintaining precise calibrated dimensions in accordance with the DIN 766 standard.
The range includes 3 mm and 6 mm diameter chains, both supplied in 50 m lengths. The calibrated short link design ensures compatibility with anchor windlass gypsies, making the chain suitable for reliable anchoring applications aboard sailing and motor boats.
Key Features
- Manufactured from AISI 316L stainless steel
- Calibrated short link chain
- Designed for anchoring applications
- Suitable for use with anchor windlasses
- Manufactured to DIN 766 standard
- Excellent corrosion resistance in marine environments
- Available in multiple diameters
Available Variants
Part Number Diameter Length Weight Working Load Breaking Load 416037 3 mm 50 m 0.165 kg/m 70 kg - 419169 6 mm 50 m 40 kg total (0.8 kg/m) 400 kg 1,630 kg
Technical Specifications
Brand Plastimo Product Type Calibrated Short Link Anchor Chain Material AISI 316L Stainless Steel Standard DIN 766 Construction Calibrated Short Link Windlass Compatibility Suitable for anchor windlasses Diameter Range 3-6 mm Length 50 m Working Load Range 70-400 kg (depending on variant) Breaking Load Up to 1,630 kg (6 mm variant) Packaging Plastic drum (6 mm variant) -
