The Osculati OSC-G7 hot-galvanized calibrated anchor chain range is designed for marine windlasses and anchoring systems. Manufactured to DIN766/ISO or ISO standards, these high-strength chains feature the OSC-G7 mark on every meter for quality identification and traceability. Available in 8 mm and 10 mm diameters with lengths of 50 m and 100 m, the chains offer working loads from 1400 kg to 2200 kg and breaking loads from 5600 kg to 8800 kg. The OSC-G7 design allows weight savings of up to 40–60% or longer chain length compared to standard chains of larger diameter.
- Description
- Ask a Question
-

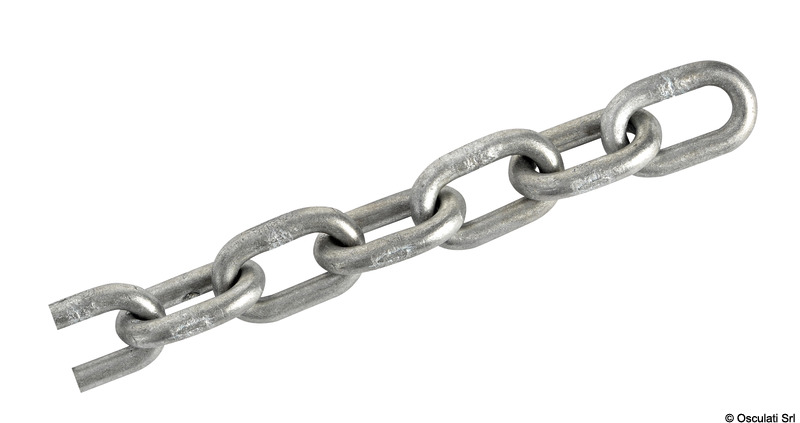

Osculati OSC-G7 Hot-Galvanized Calibrated Anchor Chain for Windlasses – 8-10 mm, DIN766 / ISO, 50-100 m
The Osculati OSC-G7 anchor chain range is manufactured from high-strength hot-galvanized steel and calibrated for use with marine windlasses. Designed to DIN766/ISO or ISO standards, these chains provide excellent corrosion resistance, reliable performance and compatibility with modern anchoring systems.
Each meter is marked with the distinctive OSC-G7 quality stamp for traceability and identification. Compared to conventional chains, the OSC-G7 design allows weight savings of up to 40–60% or enables the use of longer chain lengths while maintaining the same overall weight.
Key Features
- High-strength OSC-G7 anchor chain;
- Hot-galvanized steel construction;
- Calibrated for windlass compatibility;
- DIN766/ISO and ISO standards available;
- OSC-G7 quality mark stamped on every meter;
- Up to 40–60% weight savings compared to standard chains;
- Suitable for recreational and commercial marine applications.
Available Variants
Osculati Code Diameter Length Standard Weight (kg/m) Working Load (kg) Breaking Load (kg) P (mm) B (mm) 01.370.08-050 8 mm 50 m DIN766 / ISO 1.400 1400 5600 24 26 01.370.08-100 8 mm 100 m DIN766 / ISO 1.400 1400 5600 24 26 01.370.10-050 10 mm 50 m ISO 2.300 2200 8800 30 35 01.370.10-100 10 mm 100 m ISO 2.300 2200 8800 30 35
Osculati Codes
- 01.370.08-050 – 8 mm × 50 m DIN766/ISO
- 01.370.08-100 – 8 mm × 100 m DIN766/ISO
- 01.370.10-050 – 10 mm × 50 m ISO
- 01.370.10-100 – 10 mm × 100 m ISO
Applications
- Anchor windlass systems;
- Sailing yachts;
- Motor yachts;
- Commercial vessels;
- Marine anchoring systems;
- Mooring and anchoring operations.
Brand
- Brand: Osculati
-
