ID
1384952
$ 511.86
1-2 weeks delivery time
Diameter, mm:
- 6
- 8
- 10
- 12
Length, m:
- 25
- 50
- 75
- 100
- 150
Item:
- DIN766/ISO
- ISO

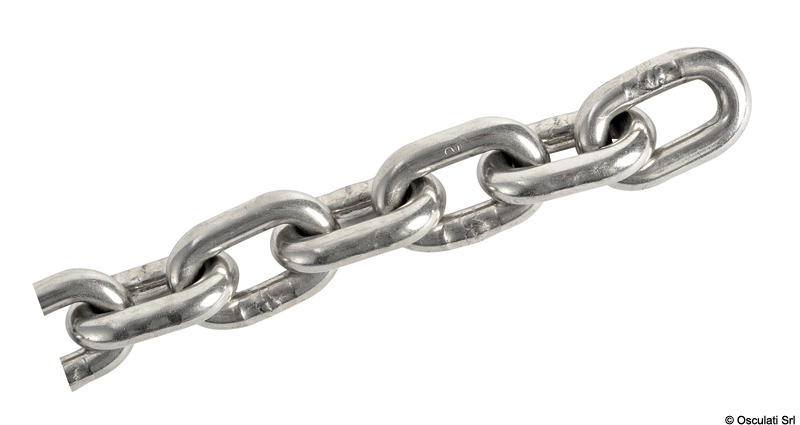

The Osculati AISI 316 stainless steel calibrated anchor chain range is designed for marine windlasses and professional anchoring systems. Manufactured from marine-grade AISI 316 stainless steel, these chains provide excellent corrosion resistance and long-term durability in demanding marine environments. Available in diameters from 6 mm to 12 mm and lengths from 25 m to 150 m, the range includes DIN766/ISO and ISO calibrated models with working loads from 400 kg to 1800 kg and breaking loads up to 7240 kg. Every meter is stamped with the OSC mark for quality assurance and traceability.
- Description
- Ask a Question
-
Osculati AISI 316 Stainless Steel Calibrated Anchor Chain for Windlasses – 6-12 mm, DIN766/ISO & ISO, 25-150 m
The Osculati stainless steel anchor chain range is manufactured from premium AISI 316 marine-grade stainless steel and calibrated for use with anchor windlasses. Designed for superior corrosion resistance, durability and reliable operation, these chains are suitable for sailing yachts, motor yachts and commercial marine applications.
Each meter is stamped with the distinctive OSC mark, guaranteeing traceability and manufacturing quality. Chains are supplied in wooden boxes or practical packaging designed for easy handling, transportation and onboard storage.
Key Features
- Marine-grade AISI 316 stainless steel construction;
- Calibrated for anchor windlass compatibility;
- DIN766/ISO and ISO versions available;
- Excellent corrosion resistance;
- OSC quality mark stamped on every meter;
- Supplied in practical packaging for storage and handling;
- Suitable for recreational and commercial marine applications.
Available Variants
Osculati Code Diameter Length Standard Weight (kg/m) Working Load (kg) Breaking Load (kg) 01.375.06-025 6 mm 25 m DIN766/ISO 0.8 400 1600 01.375.06-050 6 mm 50 m DIN766/ISO 0.8 400 1600 01.375.06-075 6 mm 75 m DIN766/ISO 0.8 400 1600 01.375.06-100 6 mm 100 m DIN766/ISO 0.8 400 1600 01.375.08-025 8 mm 25 m DIN766/ISO 1.4 800 3200 01.375.08-050 8 mm 50 m DIN766/ISO 1.4 800 3200 01.375.08-075 8 mm 75 m DIN766/ISO 1.4 800 3200 01.375.08-100 8 mm 100 m DIN766/ISO 1.4 800 3200 01.375.10-025 10 mm 25 m ISO 2.2 1250 5000 01.375.10-050 10 mm 50 m ISO 2.35 1250 5000 01.375.10-075 10 mm 75 m ISO 2.35 1250 5000 01.375.10-100 10 mm 100 m ISO 2.35 1250 5000 01.375.10-150 10 mm 150 m ISO 2.35 1250 5000 01.375.12-050 12 mm 50 m ISO 3.2 1800 7240 01.375.12-075 12 mm 75 m ISO 3.2 1800 7240 01.375.12-100 12 mm 100 m ISO 3.2 1800 7240 01.375.12-150 12 mm 150 m ISO 3.2 1800 7240
Osculati SKU List
- 01.375.06-025
- 01.375.06-050
- 01.375.06-075
- 01.375.06-100
- 01.375.08-025
- 01.375.08-050
- 01.375.08-075
- 01.375.08-100
- 01.375.10-025
- 01.375.10-050
- 01.375.10-075
- 01.375.10-100
- 01.375.10-150
- 01.375.12-050
- 01.375.12-075
- 01.375.12-100
- 01.375.12-150
Applications
- Anchor windlass systems;
- Sailing yachts;
- Motor yachts;
- Commercial vessels;
- Mooring and anchoring systems;
- Marine applications requiring maximum corrosion resistance.
Brand
- Brand: Osculati
- Material: AISI 316 Stainless Steel
-
