ID
1384929
$ 154.07
1-2 weeks delivery time
Diameter, mm:
- 6
- 8
- 10
- 12
- 14
Length, m:
- 25
- 50
- 75
- 100
- 150
Item:
- DIN766/ISO
- ISO
- DIN766
The Osculati hot-galvanized calibrated anchor chain range is designed for reliable operation with marine windlasses and is available in DIN766 and ISO calibrations. Manufactured from galvanized steel and marked with the OSC quality stamp on every meter, these chains provide excellent corrosion resistance, high working loads from 400 kg to 3200 kg, and breaking loads up to 12500 kg. Available in diameters from 6 mm to 16 mm and lengths from 25 m to 150 m, supplied in practical packaging or wooden boxes for easy handling and storage.
- Description
- Ask a Question
-

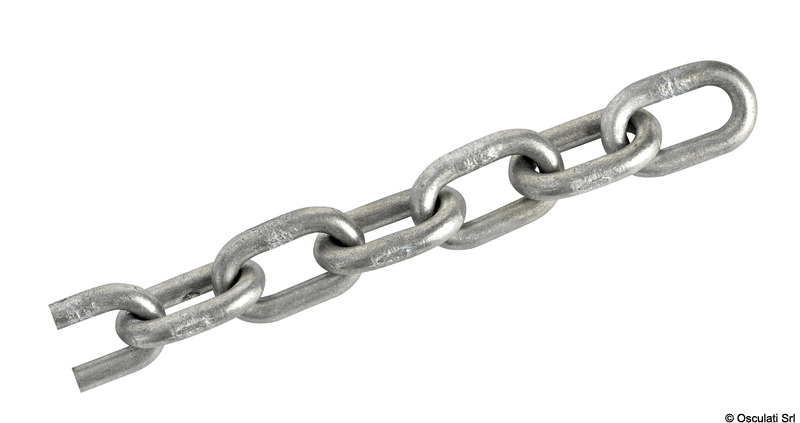

Osculati Hot-Galvanized Calibrated Anchor Chain for Windlasses – DIN766 / ISO, 6-16 mm, 25-150 m
The Osculati calibrated anchor chain range is specifically designed for marine windlasses and anchoring systems. Manufactured from hot-galvanized steel, these chains provide reliable corrosion resistance and long service life in demanding marine environments.
Available in DIN766 and ISO calibrations, the range covers diameters from 6 mm to 16 mm and lengths from 25 m to 150 m. Every meter of chain features the OSC quality mark for easy identification and quality assurance.
Key Features
- Suitable for anchor windlasses;
- Hot-galvanized steel construction;
- Available in DIN766 and ISO standards;
- OSC quality mark stamped on every meter;
- Working loads from 400 kg to 3200 kg;
- Breaking loads from 1600 kg to 12500 kg;
- Available in lengths from 25 m to 150 m.
Technical Specifications
Diameter Weight (kg/m) Working Load (kg) Breaking Load (kg) Standard P (mm) B (mm) 6 mm 0.800 400 1600 DIN766 / ISO 18.5 20 8 mm 1.400 800 3200 DIN766 / ISO 24 26 10 mm ISO 2.350 1250 5000 ISO 30 35 10 mm DIN766 2.300 1250 5000 DIN766 28 36 12 mm ISO 3.350 1800 6500 ISO 36 40 13 mm 3.800 2000 8000 DIN766 / ISO 36 47 14 mm 4.400 2500 10000 DIN766 / ISO 42 47 16 mm DIN766 5.800 3200 12500 DIN766 45 58 16 mm ISO 5.600 3200 12500 ISO 48 58
Available Osculati Codes
Osculati Code Description 01.373.06-025 6 mm × 25 m DIN766/ISO 01.373.06-050 6 mm × 50 m DIN766/ISO 01.373.06-075 6 mm × 75 m DIN766/ISO 01.373.06-100 6 mm × 100 m DIN766/ISO 01.373.08-025 8 mm × 25 m DIN766/ISO 01.373.08-050 8 mm × 50 m DIN766/ISO 01.373.08-075 8 mm × 75 m DIN766/ISO 01.373.08-100 8 mm × 100 m DIN766/ISO 01.373.10-025 10 mm × 25 m ISO 01.373.10-050 10 mm × 50 m ISO 01.373.10-075 10 mm × 75 m ISO 01.373.10-100 10 mm × 100 m ISO 01.373.10-150 10 mm × 150 m ISO 01.373.11-100 10 mm × 100 m DIN766 01.373.12-025 12 mm × 25 m ISO 01.373.12-050 12 mm × 50 m ISO 01.373.12-075 12 mm × 75 m ISO 01.373.12-100 12 mm × 100 m ISO 01.373.12-150 12 mm × 150 m ISO 01.373.13-100 13 mm × 100 m DIN766/ISO 01.373.13-150 13 mm × 150 m DIN766/ISO 01.373.14-050 14 mm × 50 m DIN766/ISO 01.373.14-100 14 mm × 100 m DIN766/ISO 01.373.14-150 14 mm × 150 m DIN766/ISO 01.373.16-150 16 mm × 150 m DIN766 01.373.17-150 16 mm × 150 m ISO
Applications
- Anchor windlass systems;
- Sailing yachts;
- Motor yachts;
- Commercial vessels;
- Workboats;
- Mooring and anchoring installations.
Brand
- Brand: Osculati
-
