Marine Town Stainless Steel 316 Single Swivel Anchor Connectors

ID 1384199

$ 41.41

1-2 weeks delivery time

Diameter, mm:

6-8
10-12
14-16

The Marine Town Single Swivel Anchor Connector is manufactured from marine-grade AISI 316 stainless steel and provides a secure rotating connection between the anchor and chain. The oval body allows smooth movement through bow rollers, while the single swivel design helps reduce chain twisting during anchoring operations. Captured pins remain secure under load, can be removed with an Allen wrench for servicing, and should be secured with Loctite after installation. Available for 6–8 mm, 10–12 mm and 14–16 mm anchor chains.

Description
Ask a Question

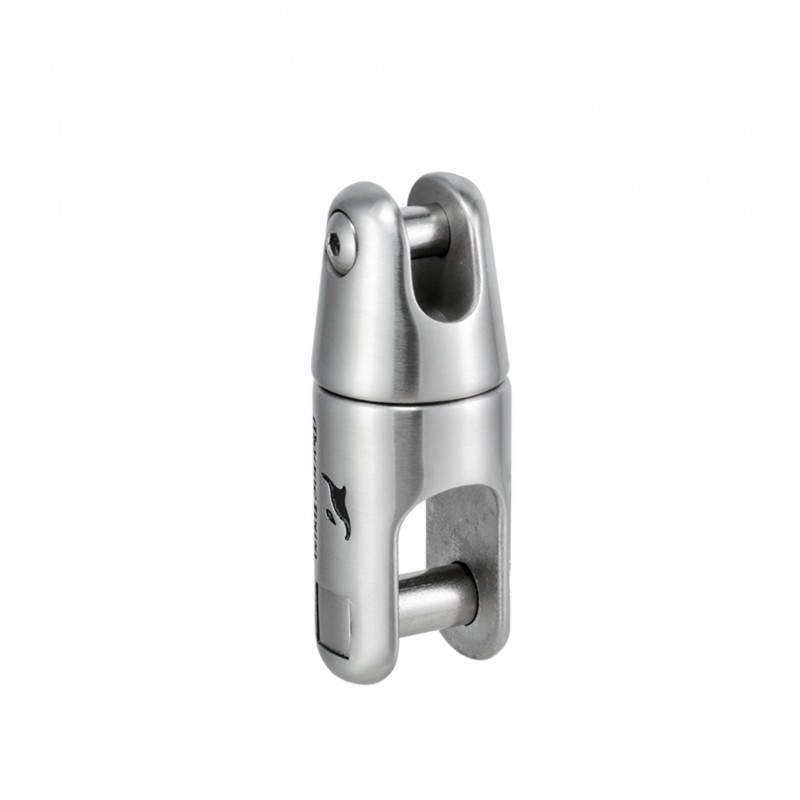

Marine Town Stainless Steel 316 Single Swivel Anchor Connectors Ø 6-16 mm

The Marine Town Single Swivel Anchor Connector is designed to create a secure connection between the anchor and chain while allowing controlled rotation to reduce chain twisting during anchoring. Manufactured from corrosion-resistant AISI 316 stainless steel, the streamlined oval profile passes smoothly through bow rollers, improving anchor handling. Captured pins remain locked under load while allowing disassembly with an Allen wrench when required. For secure installation, Loctite should be applied to the screws after assembly.

Key Features

Manufactured from marine-grade AISI 316 stainless steel
Single swivel design helps reduce chain twisting
Oval profile for smooth passage through bow rollers
Captured pins resist loosening under load
Pins removable using an Allen wrench
Loctite recommended after installation
Available for chain sizes from 6 mm to 16 mm

Technical Specifications

Model	Marine Town NDH-AC-09-S	Marine Town NDH-AC-13-S	Marine Town NDH-AC-17-S
Product Code	0202493	0202494	0202495
Chain Diameter	Ø 6-8 mm	Ø 10-12 mm	Ø 14-16 mm
Dimension A	84 mm	96 mm	151 mm
Dimension B	16 mm	23 mm	26 mm
Dimension C	9 mm	13 mm	17 mm
Dimension D	20 mm	23 mm	35 mm
Dimension E	25 mm	25 mm	42 mm
Breaking Load	850 kg	1,350 kg	1,700 kg
Material	AISI 316 Stainless Steel	AISI 316 Stainless Steel	AISI 316 Stainless Steel
Barcode	8052282021992	—	—

Available Variants

Marine Town Model	Product Code	Chain Size	Breaking Load
NDH-AC-09-S	0202493	Ø 6-8 mm	850 kg
NDH-AC-13-S	0202494	Ø 10-12 mm	1,350 kg
NDH-AC-17-S	0202495	Ø 14-16 mm	1,700 kg

Installation Notes

Designed for smooth anchor retrieval through bow rollers.
Captured pins remain secure under operating loads.
Pins can be removed using an Allen wrench.
Apply Loctite to all screws after installation.

Brand: Marine Town
