ID
1384196
$ 40.65
1-2 weeks delivery time
Diameter, mm:
- 6-8
- 10-12
The Marine Town Fixed Anchor Connector is manufactured from marine-grade AISI 316 stainless steel and provides a secure, fixed connection between the anchor and chain. Its streamlined oval profile allows smooth passage through bow rollers, while the captured pin design prevents loosening under load. The pins can be removed with an Allen wrench for maintenance, and Loctite is recommended during installation. Available for 6–8 mm and 10–12 mm anchor chains.
- Description
- Ask a Question
-

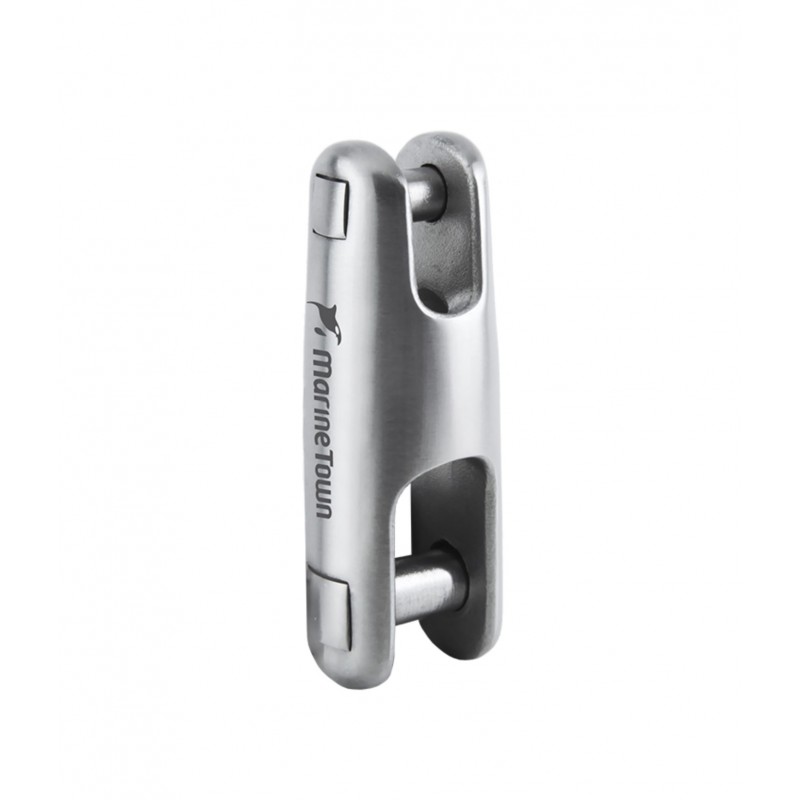

Marine Town Stainless Steel 316 Fixed Anchor Connectors Ø 6-12 mm
The Marine Town Fixed Anchor Connector is designed to create a strong and reliable connection between the anchor and chain while ensuring smooth movement through the bow roller. Manufactured from corrosion-resistant AISI 316 stainless steel, its fixed oval design minimizes snagging during anchor retrieval. Captured pins remain secure under load, while allowing easy disassembly with an Allen wrench when maintenance is required. For maximum security, Loctite should be applied to the screws after installation.
Key Features
- Manufactured from marine-grade AISI 316 stainless steel
- Fixed connector design for secure anchor-to-chain connection
- Oval profile for smooth movement through bow rollers
- Captured pins resist loosening under load
- Pins removable with a standard Allen wrench
- Loctite recommended for final screw installation
- Available for 6–8 mm and 10–12 mm anchor chains
Technical Specifications
Model Marine Town NDH-AC-09-F Marine Town NDH-AC-13-F Product Code 0202490 0202491 Chain Diameter Ø 6-8 mm Ø 10-12 mm Dimension A 78 mm 90 mm Dimension B 16 mm 23 mm Dimension C 9 mm 13 mm Dimension D 20 mm 23 mm Dimension E 25 mm 28 mm Breaking Load 850 kg 1,350 kg Material AISI 316 Stainless Steel AISI 316 Stainless Steel Barcode 8052282022050 8052282022029
Available Variants
Marine Town Model Product Code Chain Size Breaking Load NDH-AC-09-F 0202490 Ø 6-8 mm 850 kg NDH-AC-13-F 0202491 Ø 10-12 mm 1,350 kg
Installation Notes
- Captured pins remain locked under normal operating loads.
- Pins can be removed using an Allen wrench.
- Apply Loctite to the screws after installation for secure fastening.
Brand: Marine Town
-
