ID
1384203
$ 67.65
1-2 weeks delivery time
Diameter, mm:
- 6-8
- 10-12
The Marine Town Double Swivel Anchor Connector is manufactured from marine-grade AISI 316 stainless steel and features a double swivel joint that allows greater freedom of movement between the anchor and chain. The streamlined oval design ensures smooth passage through bow rollers, while the captured pin system remains secure under load. Pins can be removed with an Allen wrench for maintenance, and Loctite is recommended during installation. Available for 6–8 mm and 10–12 mm anchor chains.
- Description
- Ask a Question
-

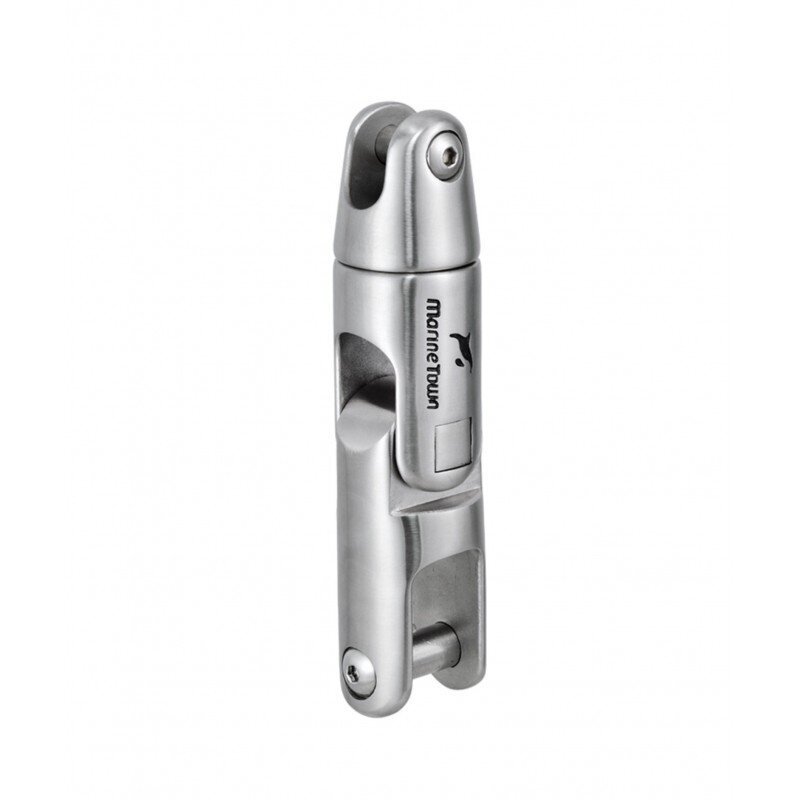

Marine Town Stainless Steel 316 Double Swivel Anchor Connectors Ø 6-12 mm
The Marine Town Double Swivel Anchor Connector is designed to provide a strong and reliable connection between the anchor and chain while allowing rotation in two directions to help reduce chain twisting during anchoring operations. Manufactured from corrosion-resistant AISI 316 stainless steel, the streamlined oval body passes smoothly through bow rollers for improved anchor handling. Captured pins remain secure under load while allowing disassembly with an Allen wrench when required. For secure installation, Loctite should be applied to the screws after assembly.
Key Features
- Manufactured from marine-grade AISI 316 stainless steel
- Double swivel joint for enhanced rotational movement
- Oval profile for smooth movement through bow rollers
- Captured pins resist loosening under load
- Pins removable using an Allen wrench
- Loctite recommended after installation
- Available for 6–8 mm and 10–12 mm anchor chains
Technical Specifications
Model Marine Town NDH-AC-09-D Marine Town NDH-AC-13-D Product Code 0202497 0202498 Chain Diameter Ø 6-8 mm Ø 10-12 mm Dimension A 134 mm 154 mm Dimension B 16 mm 23 mm Dimension C 9 mm 13 mm Dimension D 24 mm 28 mm Dimension E 25 mm 25 mm Breaking Load 850 kg 1,350 kg Material AISI 316 Stainless Steel AISI 316 Stainless Steel Barcode 8052282021428 8052282021435
Available Variants
Marine Town Model Product Code Chain Size Breaking Load NDH-AC-09-D 0202497 Ø 6-8 mm 850 kg NDH-AC-13-D 0202498 Ø 10-12 mm 1,350 kg
Installation Notes
- Double swivel construction improves anchor and chain alignment.
- Captured pins remain secure under normal operating loads.
- Pins can be removed using an Allen wrench.
- Apply Loctite to all screws after installation.
Brand: Marine Town
-
