ID
1384229
$ 89.31
1-2 weeks delivery time
Diameter, mm:
- 6-8
- 8-10
The Allpa Force Revolving Anchor Joint is manufactured from stainless steel and is designed specifically for modern asymmetric anchors. Its revolving construction automatically aligns the anchor as it is retrieved through the bow roller or anchor roller, helping prevent chain twisting behind the anchor. Available for 6–8 mm and 8–10 mm anchor chains with breaking loads of up to 6,000 kg, the Force connector provides reliable performance for demanding marine anchoring systems.
- Description
- Ask a Question
-

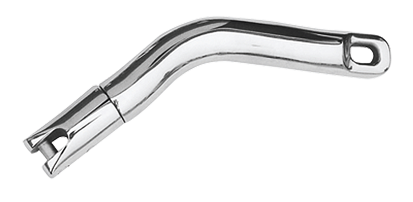

Allpa Stainless Steel Revolving Anchor Joints "Force" for Ø 6-10 mm Chain
The Allpa Force Revolving Anchor Joint is designed to improve anchor handling when used with modern asymmetric anchors. During anchor retrieval, the revolving mechanism automatically rotates the anchor into the correct position as it passes over the bow roller or anchor roller. The non-rotating section remains securely connected to the anchor, helping to prevent chain twisting and reducing the possibility of jamming during recovery. Manufactured from stainless steel, the Force joint offers reliable performance in demanding marine environments.
Key Features
- Manufactured from stainless steel
- Force revolving anchor joint design
- Automatically aligns asymmetric anchors during retrieval
- Helps prevent chain twisting behind the anchor
- Smooth operation through bow rollers and anchor rollers
- Strong construction for demanding anchoring applications
- Available for Ø6–8 mm and Ø8–10 mm chains
Technical Specifications
Model Force Ø6-8 mm Force Ø8-10 mm Article Number 9024020 9024021 Chain Compatibility Ø6-8 mm Ø8-10 mm Breaking Load 3,000 kg 6,000 kg Material Stainless Steel Stainless Steel EAN 8719182565611 8719182565611
Available Variants
Article Number Chain Size Breaking Load 9024020 Ø6-8 mm 3,000 kg 9024021 Ø8-10 mm 6,000 kg
Applications
- Designed for modern asymmetric anchors
- Automatically positions the anchor during retrieval
- Helps eliminate chain twisting behind the anchor
- Suitable for marine anchoring systems using bow rollers or anchor rollers
Brand: Allpa
-
