ID
1384232
$ 35.19
1-2 weeks delivery time
Diameter, mm:
- 6-8
- 10
- 10-12
The Talamex Anchor Connector with Swivel is manufactured from high-polished AISI 316 stainless steel and is designed for DIN 766 anchor chains. The integrated swivel helps reduce chain twisting while improving anchor alignment during deployment and retrieval. Available for chain sizes from 6–8 mm to 10–12/13 mm, the range provides safe working loads of up to 1,120 daN for dependable marine anchoring performance.
- Description
- Ask a Question
-

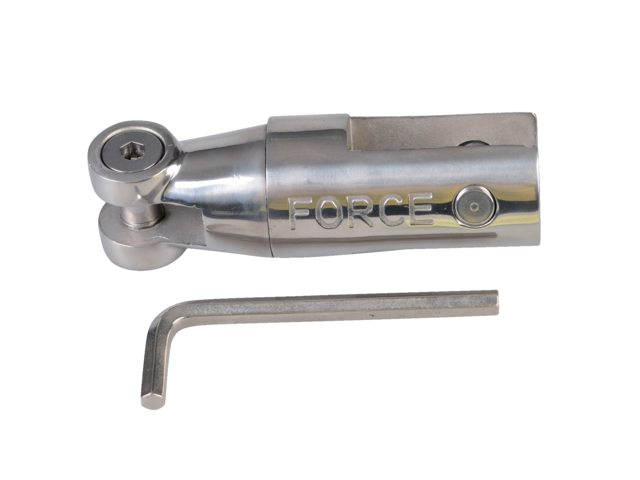

Talamex Stainless Steel AISI 316 Anchor Connectors with Swivel for DIN 766 Chain
The Talamex Anchor Connector with Swivel is designed to provide a secure connection between the anchor and chain while allowing smooth rotational movement during anchoring operations. Manufactured from high-polished AISI 316 stainless steel, it offers excellent corrosion resistance and long service life in marine environments. The integrated swivel helps reduce chain twisting and improves anchor alignment during deployment and retrieval. The range is suitable for DIN 766 anchor chains in multiple sizes.
Key Features
- Manufactured from high-polished AISI 316 stainless steel
- Integrated swivel design
- Suitable for DIN 766 anchor chains
- Helps reduce chain twisting during anchoring
- Improves anchor alignment during deployment and retrieval
- Excellent corrosion resistance for marine environments
- Available in three chain size options
Technical Specifications
Model 6-8 mm 10 mm 10-12/13 mm Article Number 77.318.100 77.318.101 77.318.102 Chain Compatibility (DIN 766) Ø 6-8 mm Ø 10 mm Ø 10-12/13 mm Safe Working Load (SWL) 850 daN 1,120 daN 1,120 daN Material High-Polished AISI 316 Stainless Steel High-Polished AISI 316 Stainless Steel High-Polished AISI 316 Stainless Steel Swivel Yes Yes Yes
Available Variants
Article Number DIN 766 Chain Size SWL 77.318.100 Ø 6-8 mm 850 daN 77.318.101 Ø 10 mm 1,120 daN 77.318.102 Ø 10-12/13 mm 1,120 daN
Applications
- Connecting anchors to DIN 766 anchor chains
- Reducing chain twisting during anchor deployment and retrieval
- Improving anchor alignment through bow rollers
- Suitable for recreational and professional marine vessels
Brand: Talamex
-
