ID
1300725
$ 8,016.01
1-2 weeks delivery time
-
+
The Maxwell VWLP 3500 vertical anchor windlass (article Vetus P105884) is a 24 V DC windlass designed for chain-only anchor systems on larger vessels. Equipped with an 85TDC chainwheel and robust marine-grade construction, it delivers powerful anchoring performance and reliable control, with a compact vertical layout that supports straightforward below-deck or through-deck installation.
- Description
- Ask a Question
-

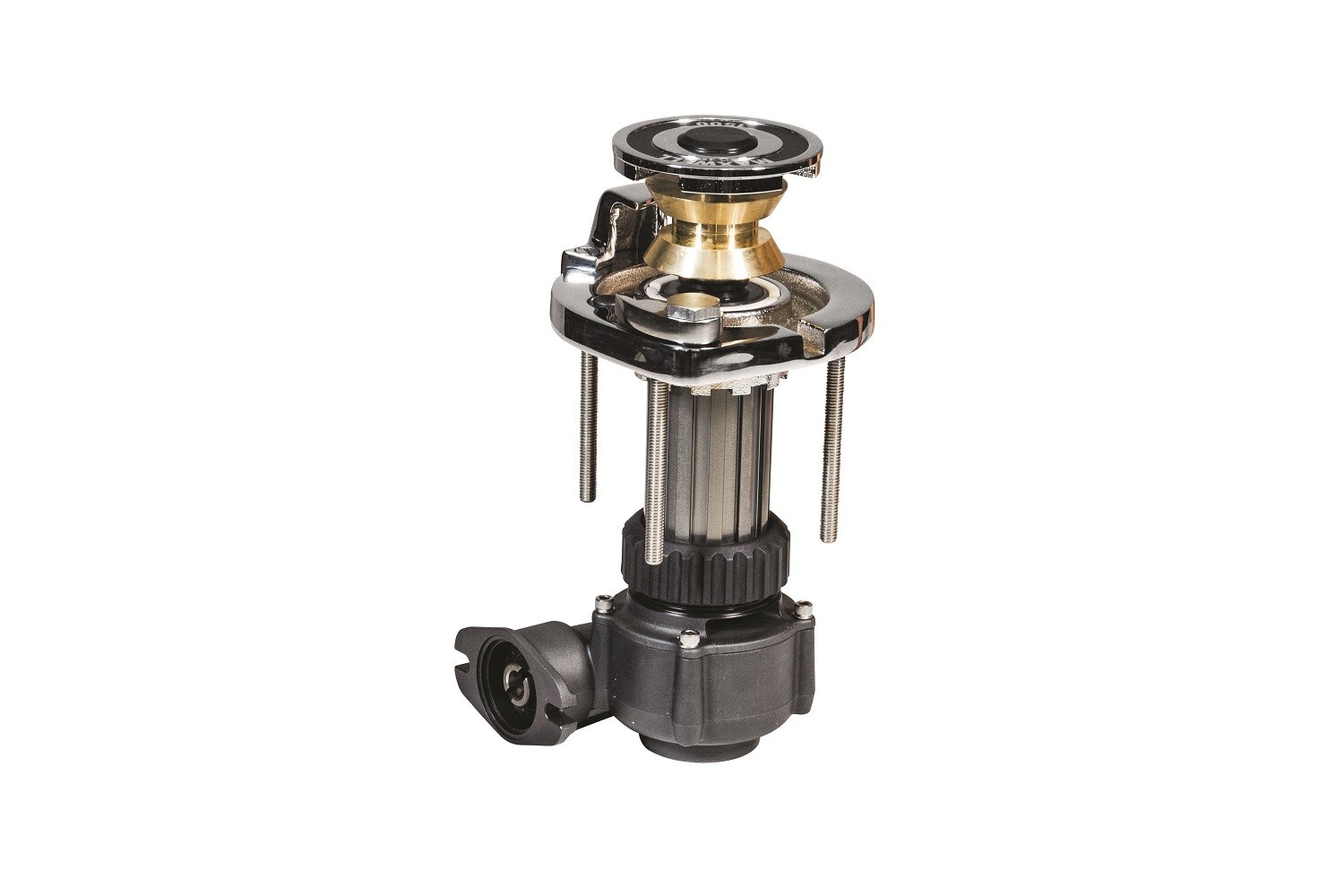

Maxwell VWLP 3500 Vertical Anchor Windlass 24V DC 85TDC (Vetus P105884)
The Maxwell VWLP 3500 vertical anchor windlass is engineered for heavy-duty anchoring on larger sailing and motor vessels where automatic or manual handling of chain-only anchor rodes is required. Powered by a 24 V DC system and fitted with an 85TDC chainwheel, this windlass provides strong pulling capacity and dependable performance in marine environments, while the vertical design supports efficient installation in anchor lockers or on deck.
Design and Functional Features
- Vertical windlass suitable for automatic chain-only anchor rode handling
- 85TDC chainwheel configuration for effective engagement of anchor chain
- Robust construction ideal for demanding marine anchoring applications
- Vertical configuration supports compact installation in anchor lockers
- Allows manual free-fall operation via cone-type brake/clutch system
- Modular design simplifies through-deck or bulkhead mounting
Construction and Materials
- Above-deck components manufactured from marine-grade stainless steel (AISI 316) and chromed bronze
- Anodized aluminium gearbox and spacer for enhanced corrosion resistance
- Heavy-duty dual-direction electric motor optimized for marine windlass use
- Precision alignment of gearbox and topworks for reliable performance
Brake and Control System
- Cone-type brake and clutch mechanism permitting manual free-fall anchoring
- Smooth progressive clutch engagement for controlled anchoring operation
- Secure anchoring hold with locking pawl or brake options
Installation and Maintenance
- Modular construction allows through-deck installation
- Supports vertical or horizontal mounting depending on vessel layout
- Windlass easily disassembled for servicing and maintenance
Technical Specifications
Parameter Specification Operating Voltage 24 V DC Chainwheel Configuration 85TDC Motor Power 1200 W (typical for VW3500 series) Maximum Pull / Lift Approx. 1590 kg (3500 lbs; typical VW3500 performance) :contentReference[oaicite:1]{index=1} Static Hold Capacity Approx. 2200 kg (4840 lbs) :contentReference[oaicite:2]{index=2} Chain Size 10–13 mm (3/8″–1/2″) :contentReference[oaicite:3]{index=3} Weight (approx.) ~48 kg (typical VW3500 DC series) :contentReference[oaicite:4]{index=4} -
