The Maxwell VW 3500 vertical anchor windlass (article Vetus P105881) is a heavy-duty 24V DC anchor winch with an 85TDC chainwheel, designed for automatic handling of chain-only anchor rodes on larger sailing and motor vessels. Featuring robust marine-grade construction, a powerful 1200 W motor, and reliable vertical or horizontal installation options, it delivers strong pull performance and smooth anchoring control.
- Description
- Ask a Question
-

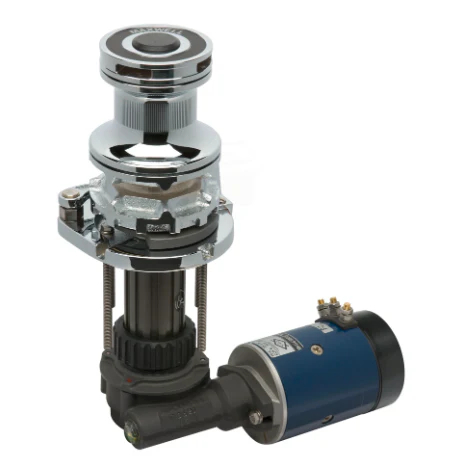

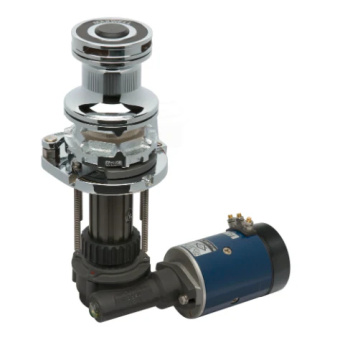

Maxwell VW 3500 Vertical Anchor Windlass 24V (Vetus P105881)
The Maxwell VW 3500 vertical anchor windlass is engineered for demanding anchoring applications on larger sailing and motor vessels. Designed primarily for automatic handling of chain-only anchor rodes, this robust windlass integrates a heavy-duty 85TDC chainwheel and a 24V DC power supply, offering reliable performance and durable construction for marine environments. :contentReference[oaicite:1]{index=1}
Design and Functional Features
- Vertical windlass designed for automatic handling of chain-only anchor rodes
- 85TDC chainwheel providing efficient chain engagement and control
- Suitable for vertical or horizontal installation depending on vessel layout
- High-quality materials and finish for durability in marine environments
- Manual free-fall anchoring capability via cone-type brake/clutch system
- Large capacity for anchoring heavy vessels with dependable performance
Construction and Materials
- Above-deck components manufactured from marine-grade stainless steel (AISI 316) and chromed bronze
- Anodized aluminium gearbox and spacer for enhanced corrosion resistance
- Dual-direction 24V DC motor designed for marine windlass operations
- Precision alignment of gearbox to topworks for reliable use and longevity
Brake and Control System
- Cone-type brake and clutch mechanism for smooth manual and powered operation
- Smooth progressive clutch engagement for controlled anchoring
- Chainwheel locking or band brake options to secure anchor position
Installation and Maintenance
- Modular design simplifies through-deck installation
- Can be mounted vertically or horizontally based on anchoring needs
- Easy to disassemble for servicing and routine maintenance
- Compatible with standard windlass control systems and accessories
Technical Specifications
Parameter Specification Operating Voltage 24 V DC Chainwheel Configuration 85TDC Motor Power 1200 W Maximum Pull / Lift Approx. 1590 kg (3500 lbs) Static Hold Approx. 2200 kg (4840 lbs) Chain Size 10-13 mm (3/8″ – 1/2″) Line Speed (Normal Working) ~15 m/min (50 ft/min) Weight (approx.) 48 kg -
