ID
1282122
$ 5,121.97
1-2 weeks delivery time
-
+
The Maxwell VWC 1000 anchor windlass (article Vetus P102760) is a vertical 12V electric windlass with a 1000W motor, designed for automatic handling of chain-only anchor rodes. Equipped with an independent capstan, clockwise (CW) anchor retrieval and a 50TDC chainwheel configuration, it supports 6–10 mm chain, delivers a maximum pull of 700 kg with a static hold of 1500 kg, and is suitable for precise anchoring and docking assistance on sailing and motor vessels.
- Description
- Ask a Question
-

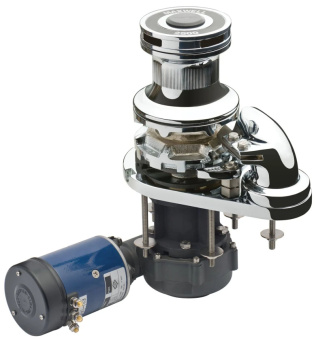

Maxwell VWC 1000 Vertical Anchor Windlass with Capstan 12V 1000W 50TDC CW (Vetus P102760)
The Maxwell VWC Series 1000 is engineered for automatic vertical handling of chain-only anchor rodes while offering additional versatility through an independent capstan. This configuration allows retrieval of a secondary rope or rope and chain rode and can be used to assist with docking procedures. The 50TDC chainwheel provides a maximum deck clearance of 50 mm, and clockwise (CW) anchor retrieval ensures compatibility with specific installation requirements.
Design and Functional Features
- Designed for automatic vertical handling of chain-only anchor rodes
- Independent capstan for retrieval of secondary rope or rope and chain rode
- Clockwise (CW) anchor retrieval configuration
- Fully automatic single or dual direction chainwheel operation
- Clutch disengagement of the chainwheel enabling independent rope hauling from any direction
- MAX-grip™ snag-free warping drum providing positive control of all ropes
- Integral chain pipe and stripper for virtually jam-free chain operation
Construction and Materials
- Above-deck components manufactured from marine-grade stainless steel (AISI 316)
- Anodized aluminium gearbox and spacer tube on all models
- Heavy-duty, dual-direction electric motor designed for marine winch applications
- Marine-grade stainless steel bolts for precise alignment and durable installation
Brake and Control System
- Cone-type brake and clutch mechanism permitting manual free-fall anchoring
- Smooth progressive clutch engagement ensuring safe and precise operator control
- Chainwheel locking pawl for secure anchoring operation
Installation and Maintenance
- Simple through-deck installation enabled by modular design
- Precise alignment of gearbox to topworks for reliable operation
- Easily disassembled construction for servicing and routine maintenance
- Low-profile configurations without warping drum available within the VWC series
Technical Specifications
Parameter Specification Motor Power 1000 W Operating Voltage 12 V Configuration Vertical Rode Type Chain Capstan / Drum Yes Chainwheel Type 50TDC CW Maximum Pull / Lift 700 kg Static Hold 1500 kg Line Speed (Normal Working) 18 m/min Supported Chain Size 6 – 10 mm Short Link Chain Size 6 – 10 mm Weight 17 kg -
