ID
1300592
$ 9,321.26
1-2 weeks delivery time
-
+
The Vetus P104991 Maxwell RC12-HD is a vertical hydraulic rope/chain windlass with clockwise rotation (100 TDC), designed for use with 10–13 mm short link chain and 18–24 mm nylon rope. The system is engineered to meet Classification Society test requirements for 12.5 mm U1 stud link chain and provides a maximum pull capacity of 1200 kg, making it suitable for vessels requiring high service speeds and reduced bow weight.
- Description
- Ask a Question
-

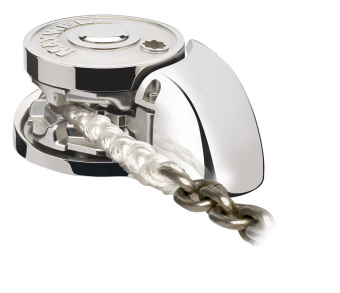

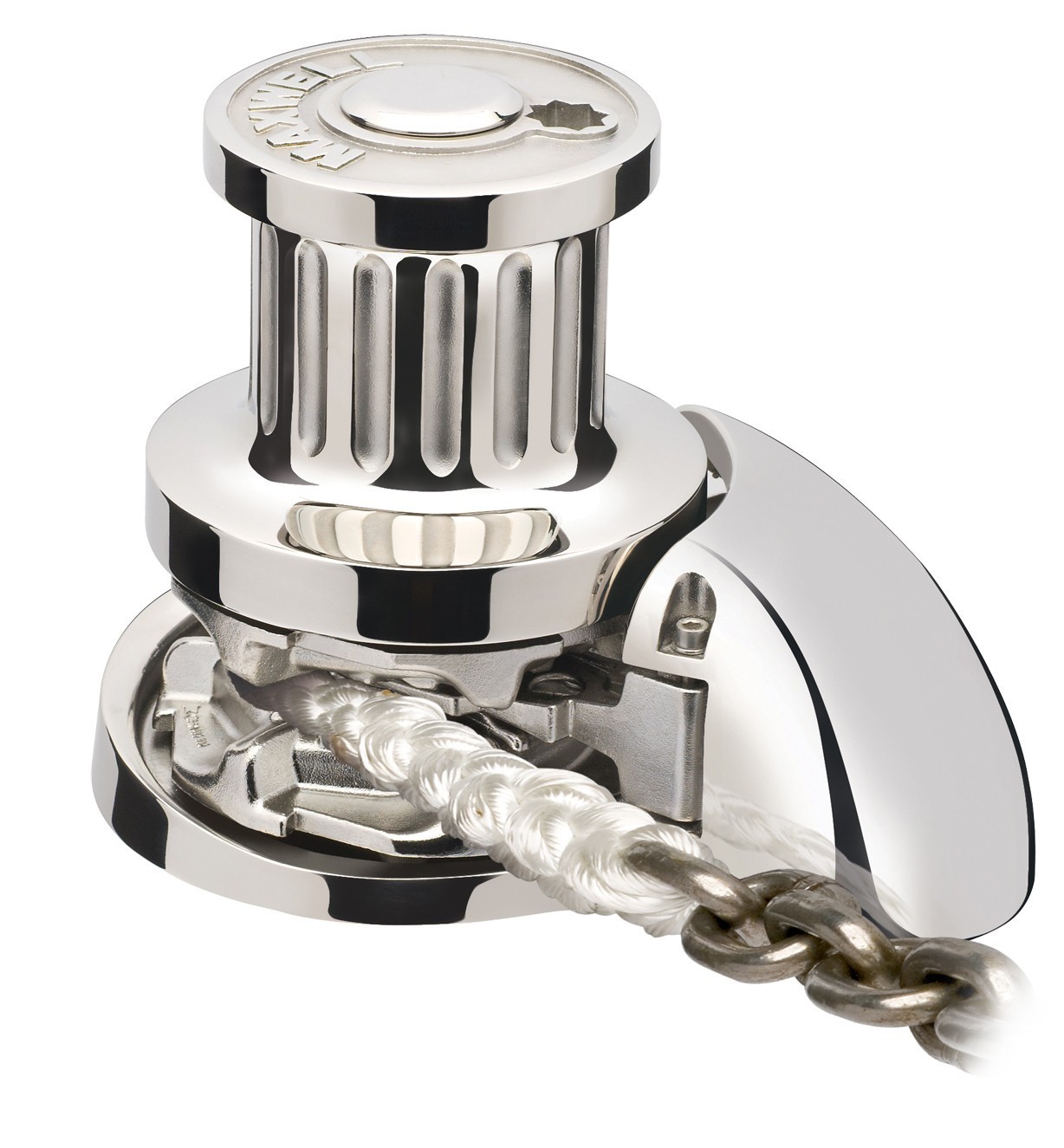

Vetus P104991 Maxwell RC12-HD Hydraulic Windlass 12mm Chain 100TDC CW
The Maxwell RC12-HD hydraulic windlass is a vertical rope/chain anchor handling system engineered for demanding marine applications. It is specifically designed for vessels where high service speed and reduced forward weight are critical operational requirements. The use of rope/chain combination rodes significantly reduces mass at the bow, improving vessel trim and handling characteristics.
Design and Application
- Optimized for patrol vessels and other high-speed craft.
- Vertical configuration suitable for compact and efficient deck installations.
- Engineered to comply with typical Classification Society test requirements.
- Compatible with 12.5 mm U1 stud link chain test specifications.
Drive System
- Hydraulic motor version.
- Designed for extended operation under load.
- Heavy-duty construction suitable for professional marine use.
- Fitted with Maxwell patented Wave Design™ chainwheel for improved chain handling.
Parameter Specification Manufacturer Part Number P104991 Model Maxwell RC12-HD Windlass Type Vertical Drive Type Hydraulic Rotation Direction Clockwise (CW) Chainwheel Code 100 TDC Maximum Pull / Lift 1200 kg Supported Chain Diameter 10–13 mm short link chain Nominal Chain Size 11 mm Supported Rope Diameter 18–24 mm nylon rope Nominal Rope Diameter 16–20 mm Drum No
Operational Characteristics
- Designed for continuous and extended operation in professional environments.
- Suitable for rope/chain combination rodes to reduce overall system weight.
- Intended for vessels requiring reliable anchor handling at high operational tempo.
-
