ID
1281907
$ 8,890.22
1-2 weeks delivery time
-
+

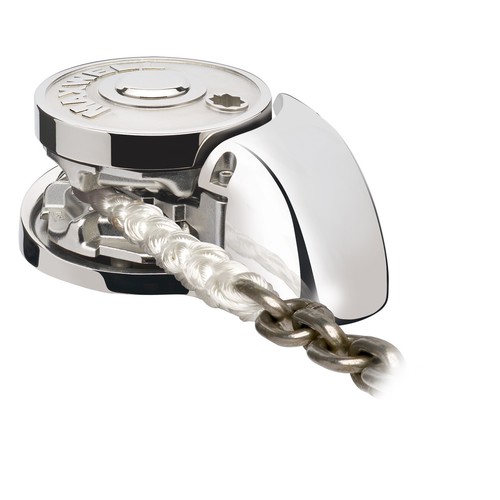

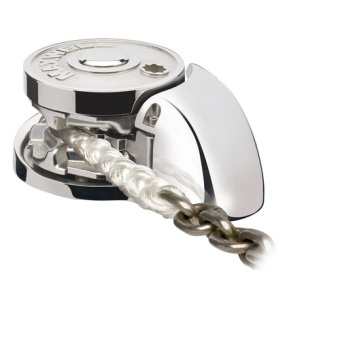

The Maxwell RC12-HD heavy duty vertical electric anchor windlass (Vetus part number P104970) is a high-performance anchoring solution designed for demanding marine applications. Powered by a 24 V DC, 2000 W fan-cooled motor and configured for clockwise (CW) rotation, this 100 TDC model is optimized for 12 mm short link chain and engineered to meet Classification Society requirements for 12.5 mm U1 stud link chain. The windlass is supplied without drum and is suitable for extended operation on vessels requiring high service speeds and reduced bow weight.
- Description
- Ask a Question
-
Maxwell RC12-HD Heavy Duty Vertical Electric Anchor Windlass, 12 mm Chain, 24 V DC, 2000 W, 100 TDC, CW
The Maxwell RC12-HD heavy duty vertical electric anchor windlass, supplied under Vetus part number P104970, is engineered for high-performance anchoring on vessels requiring reliability, speed, and extended duty cycles. This model is powered by a heavy duty 24 V DC fan-cooled motor rated at 2000 W and is configured for clockwise (CW) rotation. Designed around Maxwell’s patented Wave Design™ chainwheel, the RC12-HD delivers smooth and efficient chain handling while meeting typical Classification Society test requirements for 12.5 mm U1 stud link chain.
Design and Engineering Overview
- Heavy duty vertical windlass design for demanding anchoring operations
- Optimized for vessels requiring high service speeds and reduced bow weight
- Fan-cooled DC motor combined with fin-cooled gearbox for extended run times
- Engineered to meet Classification Society requirements for 12.5 mm U1 stud link chain
- Wave Design™ chainwheel for smooth, secure chain engagement
- Chainwheel-only configuration (no integrated drum)
Performance Characteristics
- Continuous operation capability up to 300 kgf load
- Maximum run time of approximately 5 minutes at 700 kgf load
- High efficiency anchoring suitable for patrol vessels and performance-oriented craft
- Designed to reduce weight at the bow when using rope/chain combination rodes
Compatible Rode Specifications
- Chain type: Short link anchor chain
- Recommended chain diameter: 10 mm–13 mm
- Nominal chain size for this model: 12 mm
- Recommended rope diameter: 18 mm–24 mm nylon rope
Typical Vessel Application
- Light displacement vessels up to 68 ft
- Heavy displacement vessels up to 60 ft
- Bluewater cruising yachts and high-duty marine vessels
Technical Specifications
Parameter Specification Part Number P104970 Model RC12-HD Windlass Type Vertical Drive Type Electric DC Voltage 24 V DC Motor Power 2000 W Total Deck Capacity 100 TDC Rotation Direction Clockwise (CW) Maximum Pull / Lift 1820 kg Static Hold 2200 kg Chain Speed (continuous pull) 12 m/min Chain Compatibility 12 mm short link chain Rope Compatibility 18 mm–24 mm nylon rope Drum No
Construction and Materials
- Corrosion-resistant stainless steel construction
- Designed for long-term reliability in marine environments
Included in Delivery
- Windlass assembly
- Solenoid
- User manual
- Installation guide
Optional Accessories
- Chain stopper
- AutoAnchor™ system
- Remote control
- Foot switches
- Chain snubber
- Capstan version
-
