ID
1281815
$ 7,708.22
1-2 weeks delivery time
-
+
The Maxwell RC12-12 vertical automatic rope/chain hydraulic windlass with drum, article number Vetus P104932, is a stainless steel anchor winch configured with a 90 TDC chainwheel featuring anti-clockwise (ACW) rotation. Designed for combined rope and chain anchoring operations, it supports 12–13 mm chain and 20 mm nylon rope and delivers a maximum pull of 1590 kg. This hydraulic model includes an integrated drum for enhanced rope handling and controlled anchoring performance.
- Description
- Ask a Question
-

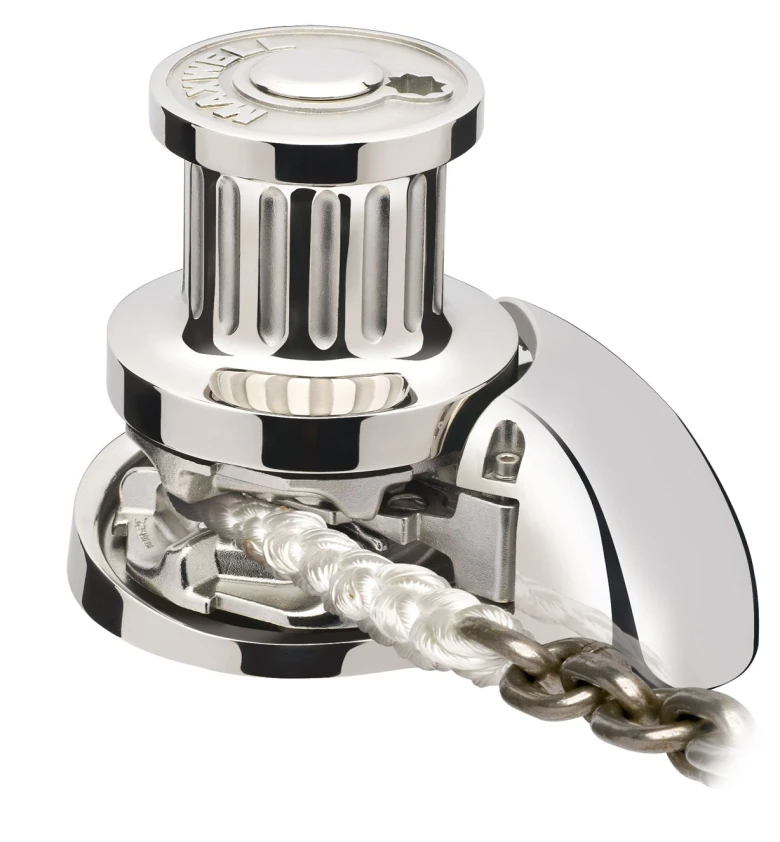

Maxwell RC12-12 Vertical Automatic Rope and Chain Hydraulic Windlass with Drum 90TDC ACW
The Maxwell RC12-12 is a stainless steel vertical automatic rope/chain hydraulic windlass with drum from Maxwell’s RC12 Series, supplied under article number Vetus P104932. This model is equipped with a 90 TDC chainwheel with anti-clockwise (ACW) rotation and is engineered for demanding anchoring applications requiring reliable hydraulic performance.
Designed for use with 12–13 mm short link chain and 20 mm nylon rope, the RC12-12 delivers a maximum pull of 1590 kg. The automatic rope/chain handling system ensures smooth and controlled anchor deployment and retrieval under load, while the integrated drum provides additional flexibility for rope handling and auxiliary line operations.
The windlass incorporates a ratcheted mechanism lever that prevents backwinding during emergency manual recovery of the anchor rode. For safe and correct operation, the windlass must be used in conjunction with a chain stopper and/or an alternative snubbing device to remove load from the windlass while the vessel is lying at anchor. These securing systems must also be used to secure the anchor in the fully raised position when the vessel is underway.
Key Features
- Vertical hydraulic windlass with integrated drum
- Automatic rope and chain handling system
- 90 TDC chainwheel with anti-clockwise (ACW) rotation
- Designed for high-load anchoring applications
- Ratcheted mechanism lever to prevent backwinding during manual recovery
- Manufactured from stainless steel
Technical Specifications
Parameter Specification Article Number Vetus P104932 Model Maxwell RC12-12 Drive Type Hydraulic Configuration Vertical Rotation Anti-Clockwise (ACW) Chainwheel Rating 90 TDC Maximum Pull / Lift 1590 kg Rope / Chain Type Automatic rope/chain Drum Yes Net Weight 26 kg
Rope and Chain Compatibility
Component Specification Chain Type Short link Chain Diameter 12–13 mm Rope Type Nylon Rope Diameter 20 mm -
