ID
1281845
$ 9,321.26
1-2 weeks delivery time
-
+

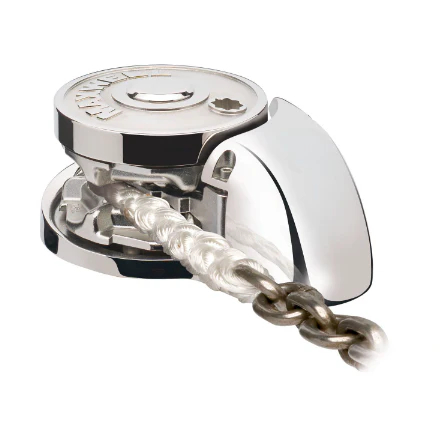

The Maxwell RC12-HD heavy duty hydraulic anchor windlass (Vetus part number P105411) is designed for demanding marine anchoring applications. Featuring a robust hydraulic drive system configured for anti-clockwise (ACW) rotation and a total drum capacity rating of 100TDC, this model is optimized for use with 10 mm short link anchor chain. Supplied without an integrated drum, it provides powerful and reliable hydraulic performance for automatic anchor deployment and retrieval.
- Description
- Ask a Question
-
Maxwell RC12-HD Heavy Duty Vertical Hydraulic Anchor Windlass, 10 mm Chain, 100TDC, ACW (No Drum)
The Maxwell RC12-HD heavy duty vertical hydraulic anchor windlass, supplied under Vetus part number P105411, is engineered for effective anchor handling in demanding marine conditions. This model features a hydraulic drive system with anti-clockwise (ACW) rotation and a total drum capacity rating of 100TDC. Designed for compatibility with 10 mm short link anchor chain, the windlass is supplied without an integrated drum to suit installations requiring a chain-only configuration.
Design and Functional Features
- Heavy duty vertical windlass configuration for robust marine installations
- Hydraulic drive system for reliable high-load operation
- Anti-clockwise (ACW) rotation configuration
- Total Drum Capacity rating: 100TDC
- Supplied without integrated drum (chainwheel only)
- Part of the Maxwell RC12-HD Heavy Duty windlass series
Operational and Safety Notes
- Designed for automatic anchor deployment and retrieval under hydraulic power
- Recommended for use with a chain stopper and/or snubbing device to remove load from the windlass while at anchor
- Chain stopper or snubbing system should also secure the anchor in the fully raised position while underway
Compatible Rode Specifications
- Chain type: Short link anchor chain
- Maximum chain diameter: 10 mm
- Rode configuration: Chain or rope/chain combination depending on installation requirements
Technical Specifications
Parameter Specification Part Number P105411 Model RC12-HD Series Type Heavy Duty Drive Type Hydraulic Total Drum Capacity 100 TDC Rotation Direction Anti-clockwise (ACW) Drum No Chain Compatibility 10 mm short link chain -
