ID
1300753
$ 10,192.10
1-2 weeks delivery time
-
+

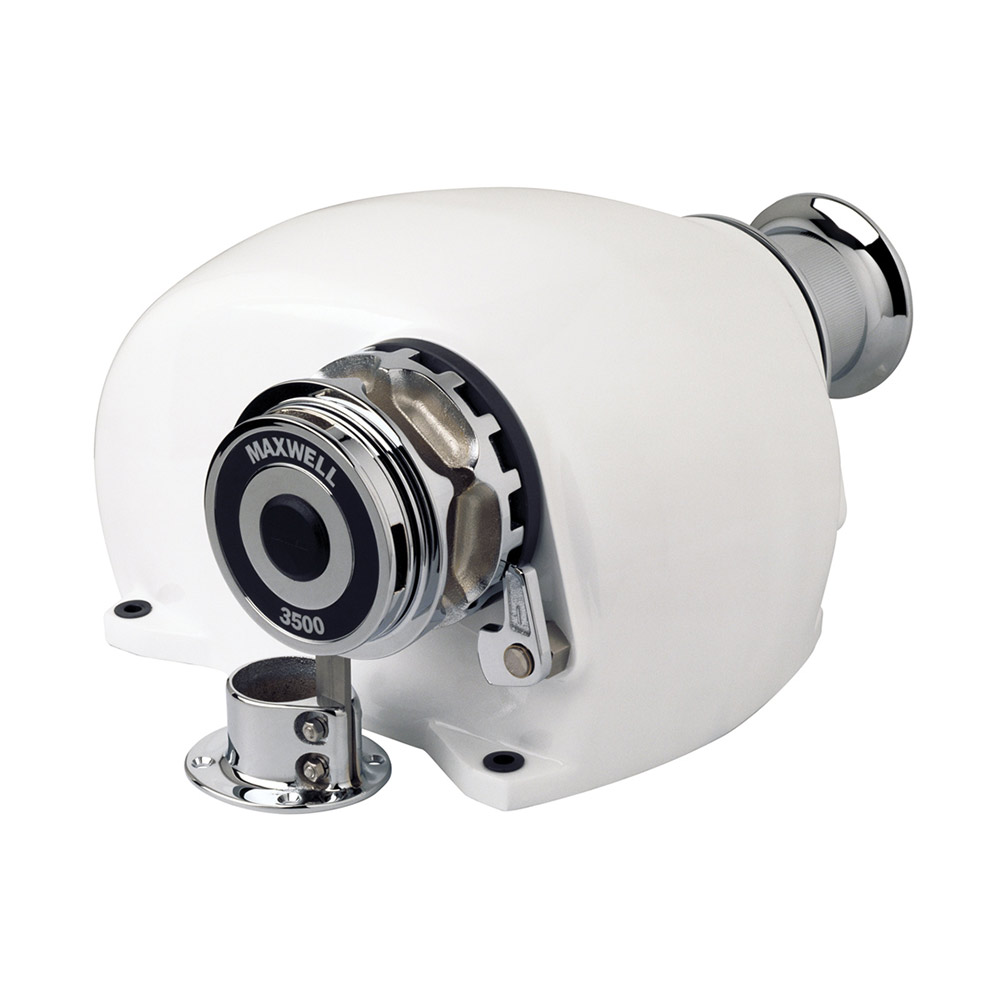

The Maxwell 3500 HWC Horizontal Windlass 12V 1200W SCW/SD(stbd) (Vetus P100268) is a horizontal marine windlass with a 12 V DC power system and 1200 W electric motor. It features a single chainwheel plus starboard side independent secondary drum (SCW/SD) configuration for efficient automatic anchor chain handling and secondary rope/chain retrieval, designed to work with standard 10–13 mm anchor chain on medium vessels.
- Description
- Ask a Question
-
Maxwell 3500 HWC Horizontal Windlass 12V 1200W SCW/SD(stbd) (Vetus P100268)
Specification Details Model 3500 HWC SCW/SD(stbd) Article Number Vetus P100268 Power Supply 12 V DC Motor Power 1200 W Configuration Single chainwheel with starboard secondary drum (SCW/SD) Chain Size Compatibility 10–13 mm (3/8″–1/2″) Maximum Pull Capacity Approx. 1590 kg (3500 lb) Line Speed (Normal Working) Approx. 15 m/min (50 ft/min) Typical Net Weight Approx. 94–95 kg (208–210 lb)*
Technical Features
- Horizontal deck-mounted windlass designed for automatic anchor chain handling (series HWC 3500)
- 12 V DC electric motor with 1200 W rated power for reliable anchoring performance
- Single chainwheel with independent starboard secondary drum (SCW/SD) for chain and secondary rope operation
- Compatible with standard marine anchor chain sizes from 10 mm to 13 mm
- Independent secondary drum useful for rope handling, docking lines, or auxiliary tasks
Applications
- Main anchor handling on leisure and commercial vessels
- Horizontal windlass solution with combined chain and secondary line control
- Marine anchoring and docking operations where auxiliary line handling is required
-
