ID
1300760
$ 24,262.21
1-2 weeks delivery time
-
+
The Maxwell 3500 HWVC Horizontal Windlass Double Chainwheel Double Drum 24V 1200W (Vetus P106522) is a heavy-duty marine anchoring windlass designed for horizontal deck installation on larger vessels. It features a 24 V DC, 1200 W motor, dual chainwheel and dual drum configuration for simultaneous handling of multiple anchor rodes, and marine-grade corrosion resistance for durability in harsh environments.
- Description
- Ask a Question
-

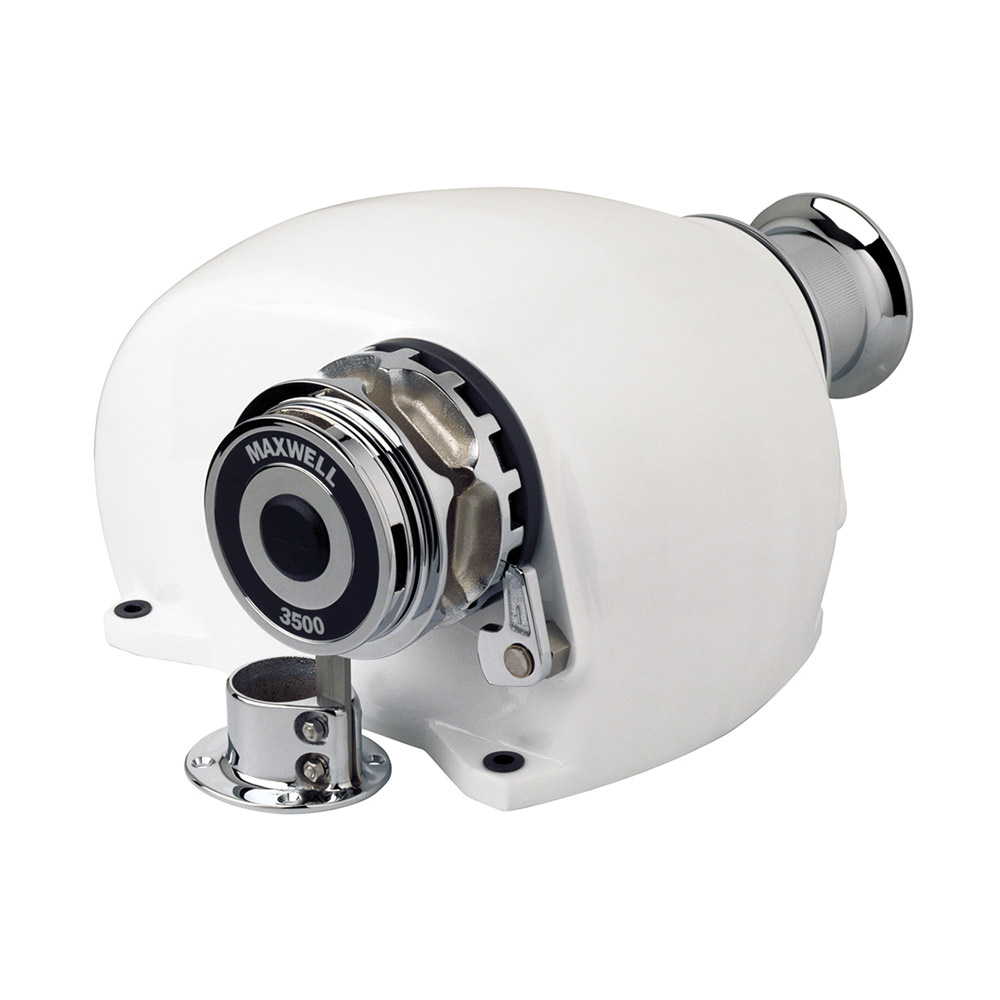

Maxwell 3500 HWVC Horizontal Windlass Double Chainwheel Double Drum 24V 1200W (Vetus P106522)
Specification Details Model 3500 HWVC Dbl CHW Dbl DRM Article Number Vetus P106522 Power Supply 24 V DC Motor Power 1200 W Configuration Horizontal windlass with double chainwheel and double drum Chain Size Compatibility 10–13 mm (3/8″–1/2″)* Maximum Pull Capacity Approx. 1590 kg (3500 lb)* Line Speed (Normal Working) Approx. 15 m/min (50 ft/min)* Corrosion Resistance Marine-grade materials for harsh saltwater environments
Technical Features
- 24 V DC heavy-duty anchor windlass with powerful 1200 W motor
- Dual chainwheel and dual drum arrangement for handling two anchor rodes or auxiliary lines
- Horizontal deck-mounted configuration with components above deck for easier installation and servicing
- Designed to manage heavier anchoring loads on larger yachts, commercial boats and offshore vessels
- Constructed with corrosion-resistant materials suitable for marine environments
Applications
- Primary anchoring solution for large leisure and commercial vessels
- Simultaneous management of dual anchor chains or rodes
- Marine deck installations requiring robust and versatile anchoring equipment
-
