ID
1300757
$ 10,192.10
1-2 weeks delivery time
-
+

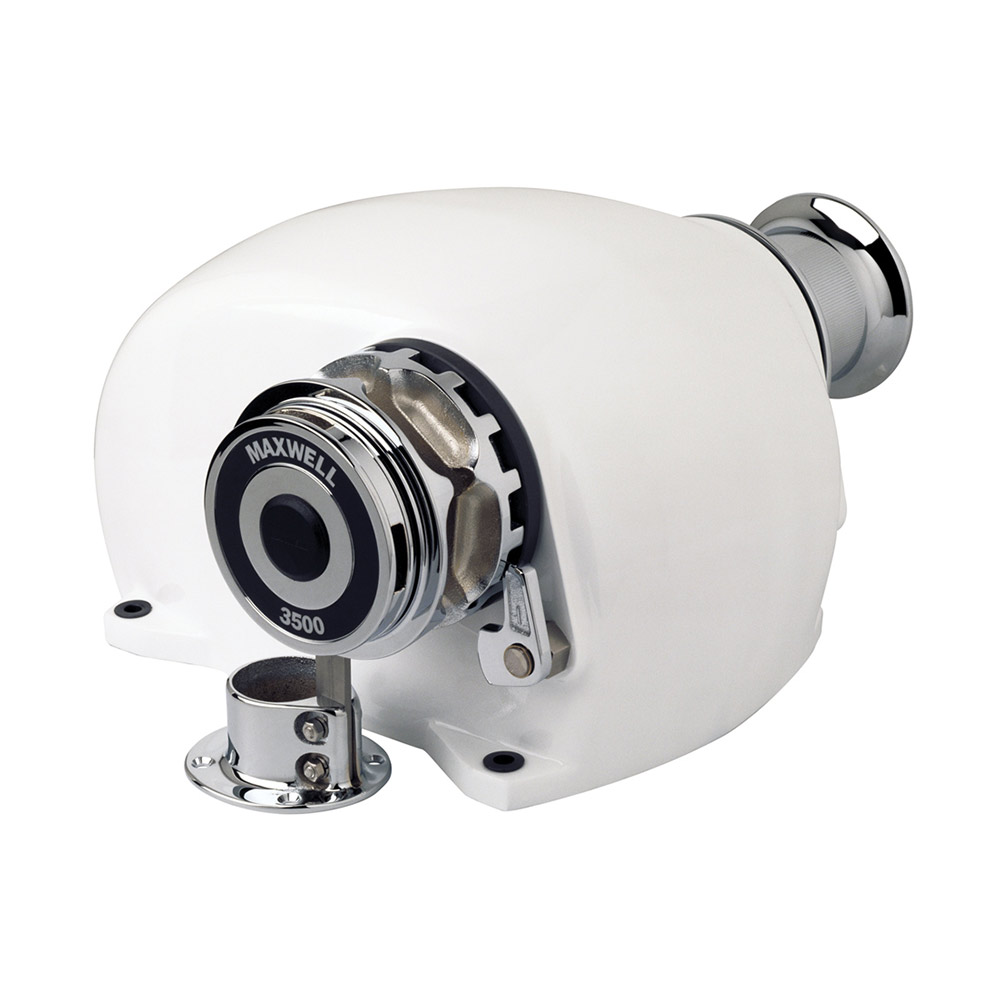

The Maxwell 3500 HWC Horizontal Windlass 24V 1200W SCW/SD(port) (Vetus P100272) is a DC electric horizontal anchor windlass designed for automatic handling of standard 10–13 mm anchor chain. Fitted with a 24 V DC, 1200 W motor and a single chainwheel with independent port side secondary drum (capstan) configuration, it delivers reliable anchoring performance and auxiliary rope/chain retrieval capability for medium-sized vessels.
- Description
- Ask a Question
-
Maxwell 3500 HWC Horizontal Windlass 24V 1200W SCW/SD(port) (Vetus P100272)
Specification Details Model 3500 HWC SCW/SD(port) Article Number Vetus P100272 Power Supply 24 V DC Motor Power 1200 W Configuration Single chainwheel with independent port secondary drum (SCW/SD) Chain Size Compatibility 10–13 mm (3/8″–1/2″) Maximum Pull Capacity Approx. 1590 kg (3500 lb) Line Speed (Normal Working) Approx. 15 m/min (50 ft/min) Net Weight (DC) Approx. 94.5 kg (208 lb)*
Technical Features
- 24 V DC horizontal windlass with 1200 W motor for robust anchor handling
- Designed for automatic horizontal handling of anchor chain rode
- Independent secondary port side drum (capstan) for rope/chain retrieval or docking assistance
- Compatible with standard marine anchor chain sizes from 10 mm to 13 mm
- All key components above deck for simplified installation and maintenance
Applications
- Primary anchoring system for medium-sized leisure and commercial vessels
- Horizontal windlass use with auxiliary rope/chain handling capability
- Marine anchoring and docking operations leveraging dependable 24 V DC power
-
