ID
1300756
$ 10,192.10
1-2 weeks delivery time
-
+
The Maxwell 3500 HWC Horizontal Windlass 12V 1200W SCW/SD(port) (Vetus P100271) is a robust 12 V DC marine windlass from the HWC 3500 series featuring a single chainwheel with a starboard chainwheel and an independent port-side secondary drum (capstan) for rope/chain retrieval or docking assistance. It is designed for automatic horizontal handling of anchor chain (10–13 mm) with a 1200 W motor and a maximum pull of approximately 1590 kg.
- Description
- Ask a Question
-

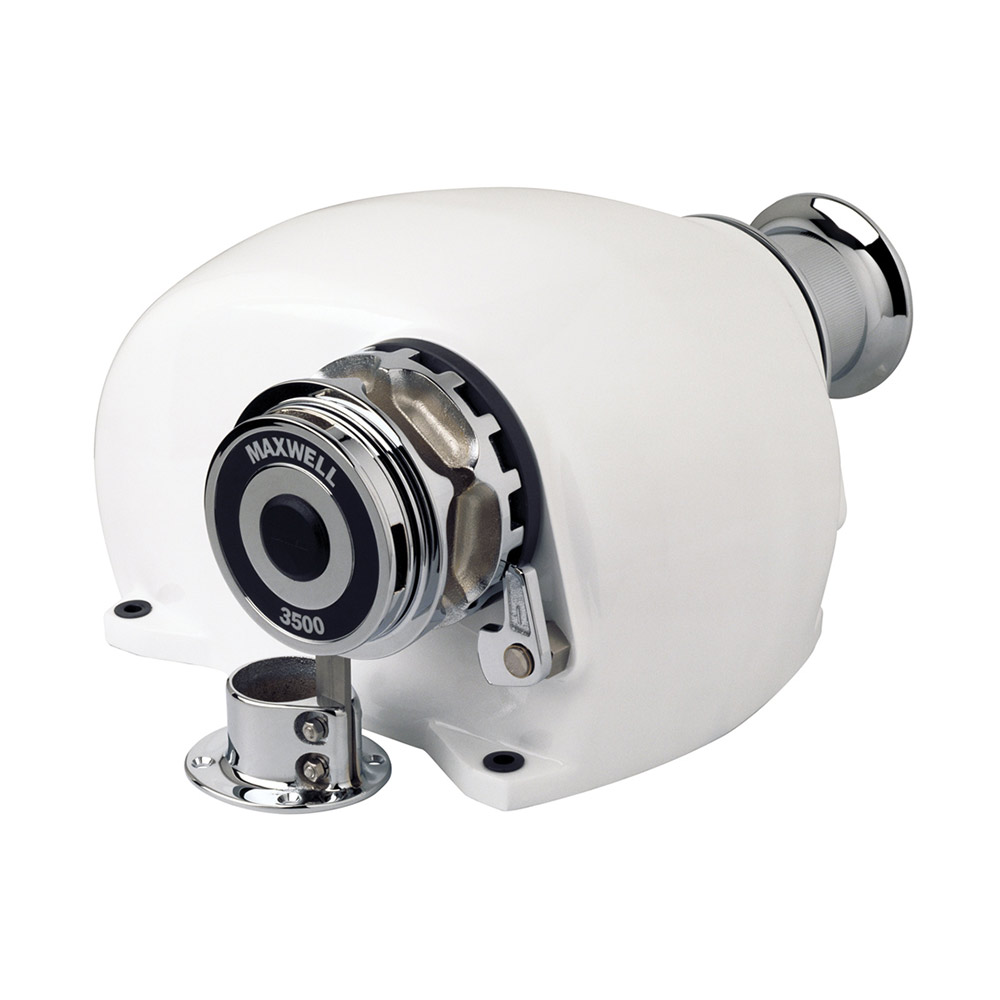

Maxwell 3500 HWC Horizontal Windlass 12V 1200W SCW/SD(port) (Vetus P100271)
Specification Details Model 3500 HWC SCW/SD(port) Article Number Vetus P100271 Power Supply 12 V DC Motor Power 1200 W Configuration Single chainwheel plus independent port secondary drum (capstan) Maximum Pull Capacity Approx. 1590 kg (3500 lb) Chain Size Compatibility 10–13 mm (3/8″–1/2″) Line Speed (Normal Working) Approx. 15 m/min (50 ft/min) Net Weight Approx. 94.5 kg (208 lb)
Technical Features
- Horizontal deck-mounted windlass from the HWC 3500 series designed for automatic chain handling
- 12 V DC electric motor with 1200 W power for robust anchoring performance
- Single chainwheel operation with independent port side secondary drum (capstan) for rope/chain retrieval or docking assistance
- Designed for standard marine anchor chain sizes from 10 mm to 13 mm
- All components above deck for easy installation and maintenance
Applications
- Primary anchoring system for leisure and commercial vessels
- Horizontal windlass application with auxiliary rope/chain handling capability
- Marine anchoring and docking operations requiring dependable 12 V DC power
-
