ID
1300751
$ 11,511.49
1-2 weeks delivery time
-
+
The Maxwell 3500 HWC Horizontal Windlass 24V 1200W DCW (Vetus P100266) is a robust marine anchoring windlass designed for horizontal deck installation with a dual-direction chainwheel configuration. It operates from a 24 V DC power supply with a 1200 W motor, delivering reliable performance for automatic handling of 10–13 mm anchor chain on medium-to-large vessels.
- Description
- Ask a Question
-

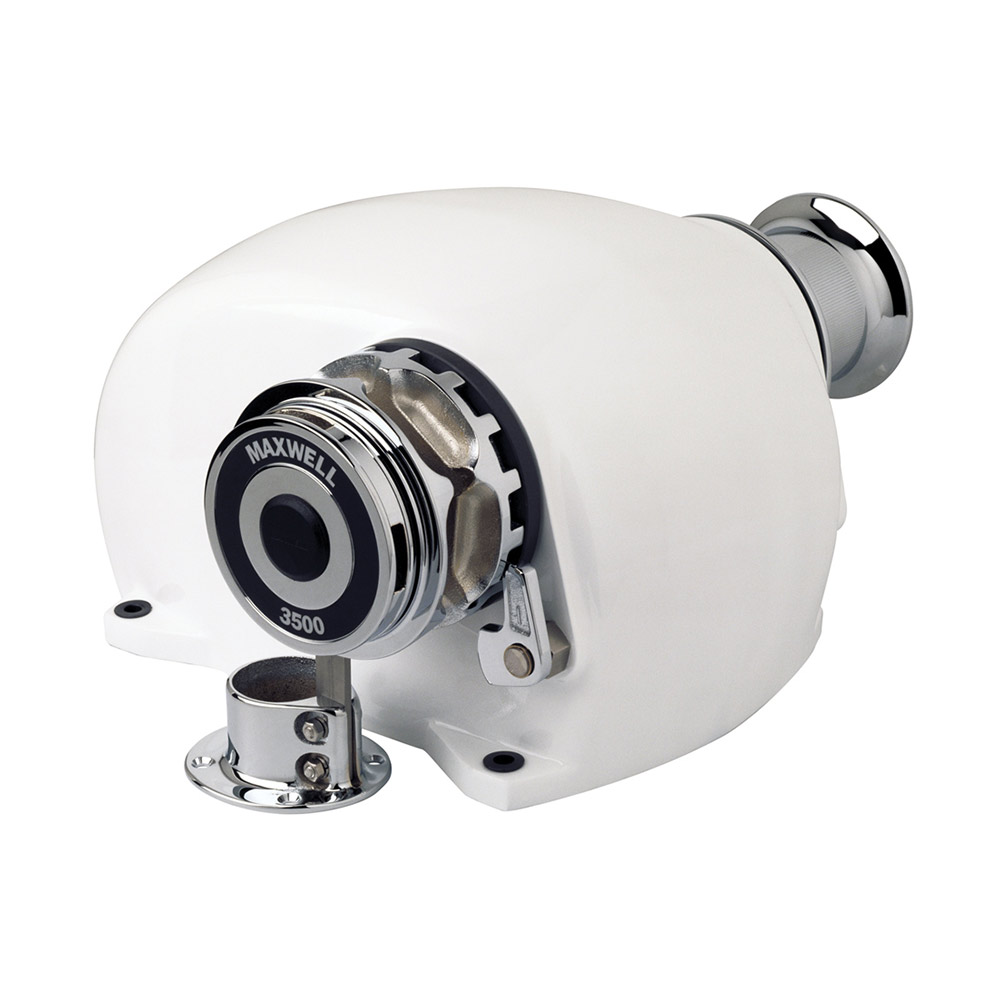

Maxwell 3500 HWC Horizontal Windlass 24V 1200W DCW (Vetus P100266)
Specification Details Model 3500 HWC DCW Article Number Vetus P100266 Power Supply 24 V DC Motor Power 1200 W Maximum Pull Capacity Approx. 1590 kg (3500 lb) Chain Size Compatibility 10–13 mm (3/8″–1/2″) Line Speed (Normal Working) Approx. 15 m/min (50 ft/min) Configuration Horizontal windlass with dual-direction chainwheel (DCW) Net Weight (DC Version) Approximately 94.5 kg (208 lb)*
Technical Features
- 24 V DC horizontal windlass designed for automatic anchor chain handling
- Dual-direction chainwheel (DCW) for reliable deployment and retrieval of chain
- Compatible with standard marine anchor chains (10–13 mm) per HWC 3500 series specifications
- Heavy-duty motor (1200 W) for consistent anchoring performance under load
- Horizontal deck-mounted design with all key components above deck
Applications
- Main anchor handling for leisure and commercial vessels
- Horizontal windlass installations requiring robust electric drive performance
- Marine anchoring operations with reliable DC power and automatic chain feed
-
