JL Audio MediaMaster 105 HR is a hidden marine stereo designed for display-free installation, offering 12-channel 4 V preamp outputs, four independent audio zones, Bluetooth aptX streaming, and full NMEA 2000 integration.
- Description
- Ask a Question
-

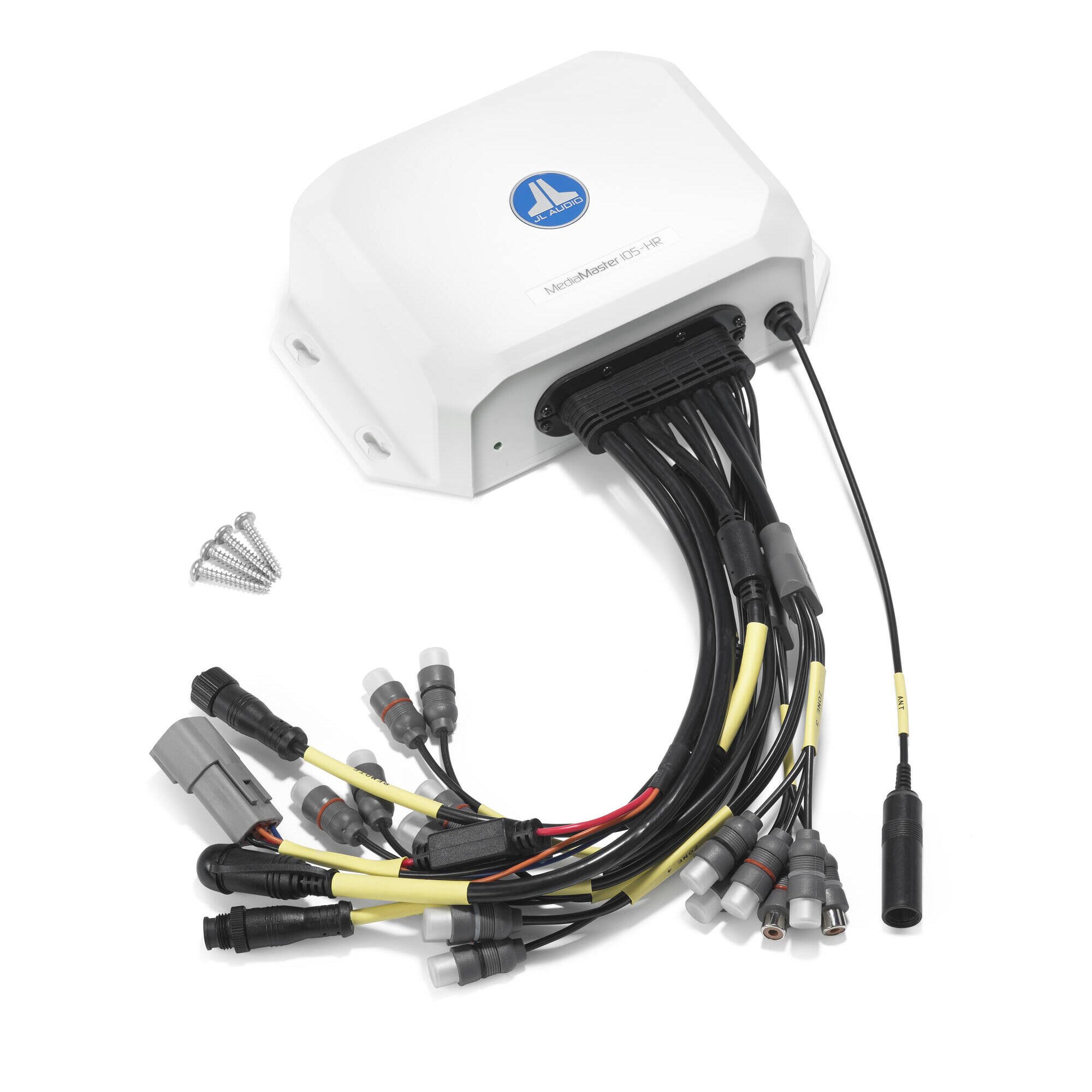

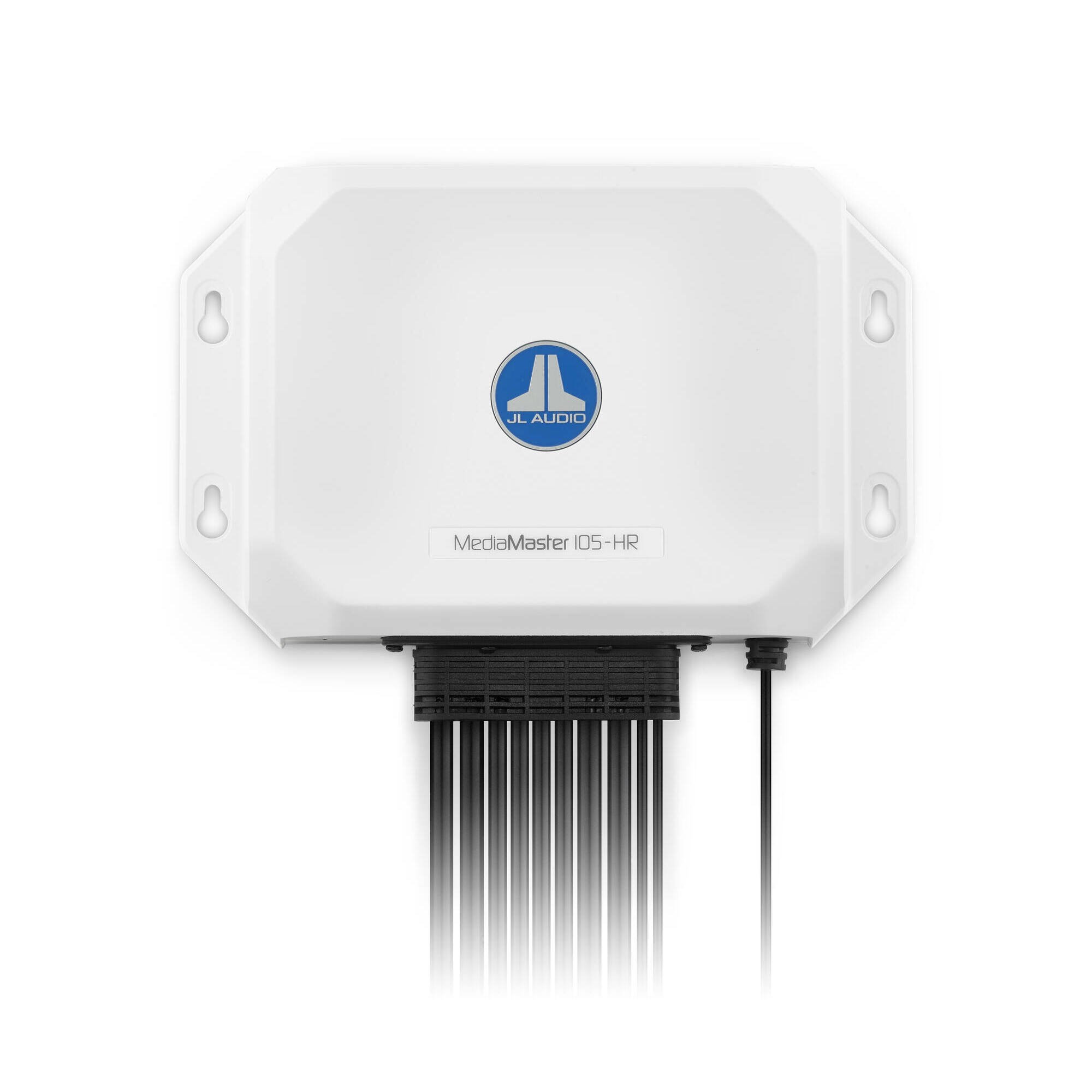

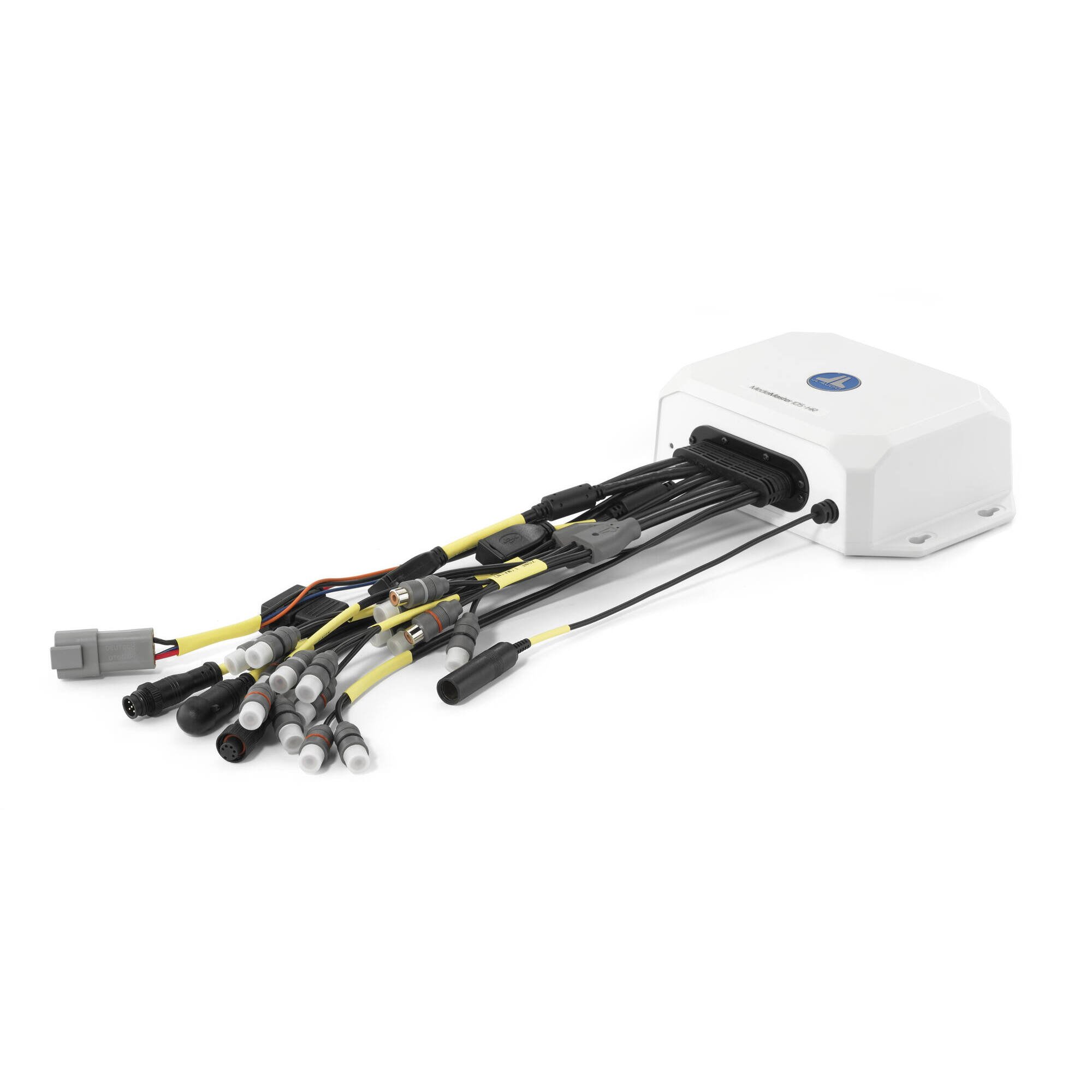

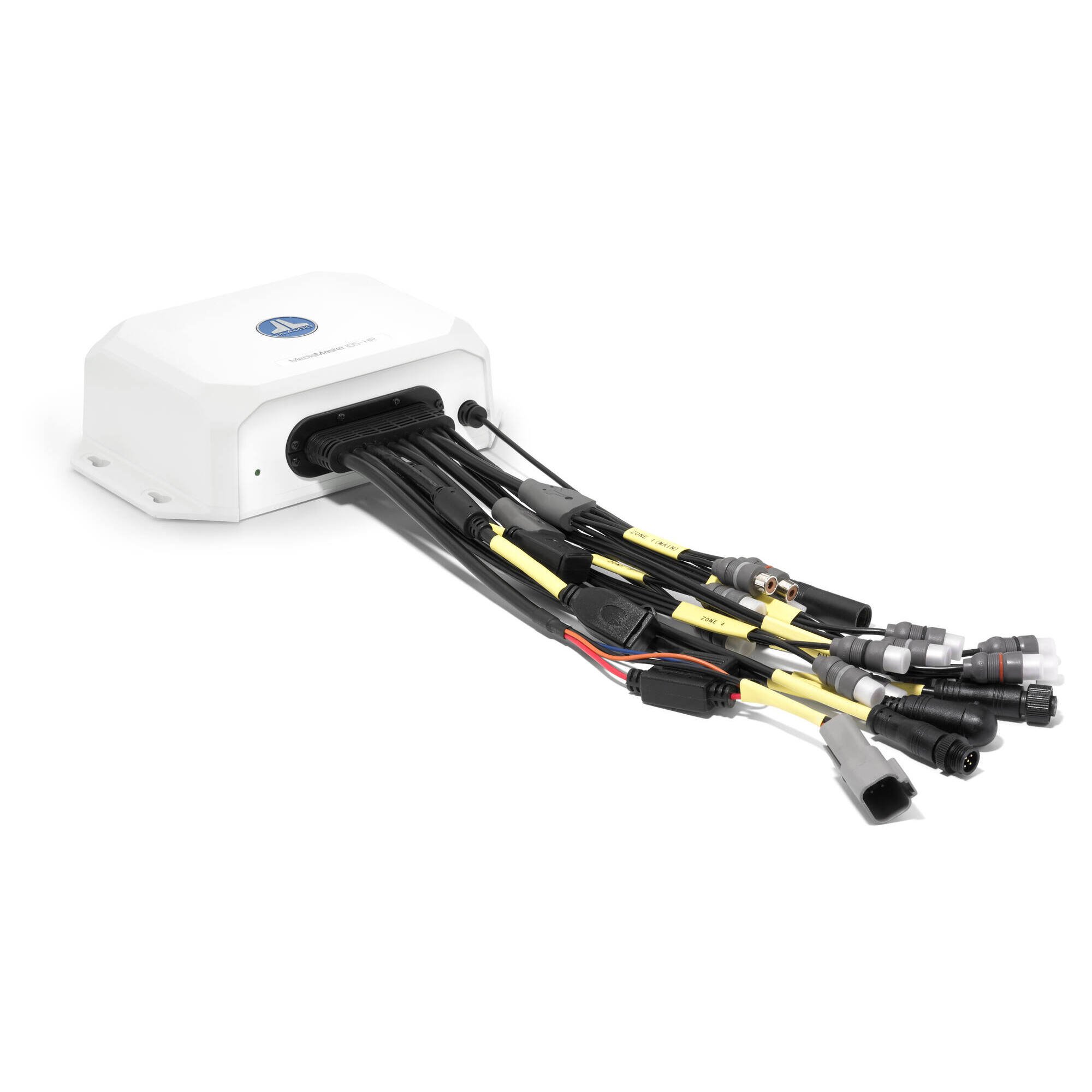

JL Audio 010-03854-00 - Mediamaster 105 HR Stereo Station
The JL Audio MediaMaster 105 HR is a high-performance marine stereo station designed to operate as a hidden receiver. Built for advanced marine audio systems, it delivers exceptional sound quality and extensive connectivity while remaining completely concealed from view. This model includes all the core capabilities of the MM105, without an integrated display or physical controls, making it ideal for installations controlled via compatible marine displays or network controllers.
Key Features
- 12 channels of audiophile-quality preamp outputs with 4V RMS signal level
- Designed for hideaway installation without display or onboard controls
- Four independent and configurable audio zones with separate control options
- NMEA 2000® connectivity for full system integration and vessel control
- Compatible with Garmin, Simrad, Lowrance, and Raymarine multi-function displays
- Optional MMR-40 NMEA 2000® Network Controller support (sold separately)
Audio Sources & Connectivity
- Global AM/FM tuner with RDS for enhanced broadcast information
- Support for Digital HD Radio™ (North America) and DAB+ Radio (Europe) tuners
- SiriusXM-Ready™ support (tuner, antenna, and subscription sold separately)
- Bluetooth® audio streaming with Qualcomm® aptX™ for high-fidelity wireless audio
- USB1 and USB2 direct digital inputs for iPhone® and USB storage devices
- USB charging outputs rated at 1A and 500mA
- Two auxiliary analog audio inputs (AUX1 and AUX2)
Sound Engineering & Control
The MediaMaster 105 HR is engineered without an internal power amplifier to ensure the highest possible signal purity. Instead, it provides twelve channels of clean, low-noise preamp outputs for connection to dedicated marine amplifiers. Each of the four audio zones can be individually named and adjusted, allowing precise system tuning. Integrated Zero-Clipping technology and self-limiting tone controls help maintain clean sound at high volume levels while reducing the risk of loudspeaker damage.
Technical Data
Preamp Outputs 12 Channels, 4V RMS Audio Zones 4 Independent Zones Network Connectivity NMEA 2000® Certified Bluetooth Qualcomm® aptX™ Enabled USB Inputs USB1 and USB2 with Charging
Brand: JL Audio
Barcode: 0699440999793
-
