Quick Trim Tabs Intercepta IN60 is a trim tab system for boats 12–15 m, offering real-time automatic stabilization of pitch and roll with external actuators, plug-and-play setup, and intuitive MC² control system operation.
- Description
- Ask a Question
-

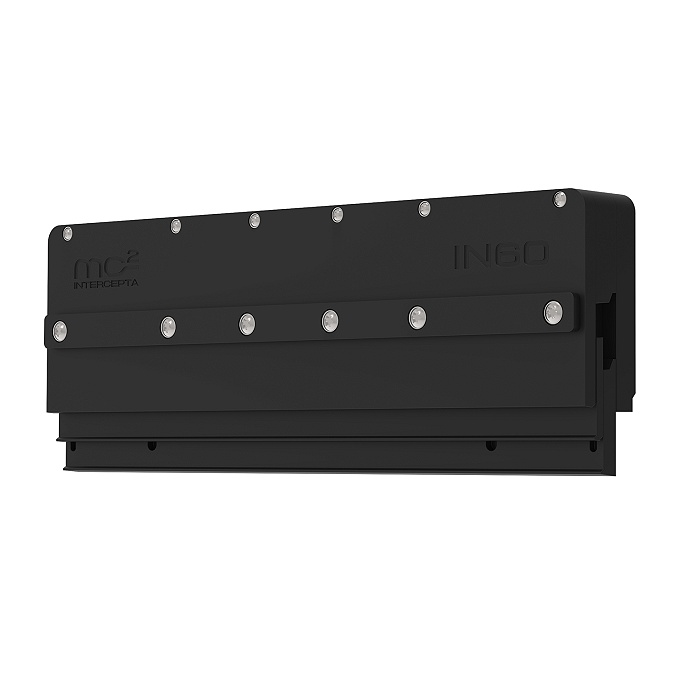

Quick Trim Tabs Intercepta IN60
Quick Intercepta IN60 trim tabs are designed for boats and yachts from 12-15 m / 40-50 ft. The system provides active pitch and roll stabilization with fully external electric actuators for efficient onboard performance and simplified installation.
The plug-and-play package includes trim tabs, wiring, and a central control unit that automatically adjusts according to sea and navigation conditions. The MC² Remote Control panel with a 3,5” display allows intuitive system management and reliable stabilization control.
Key Features
- Plug-and-play stabilization system
- Active real-time pitch and roll correction
- Fully external integrated electric actuators
- Compatible with Lead, AGM, Gel, and Lithium batteries
- Customizable auto cleaning function
- Compact installation solution for limited engine room space
- Blade speed up to 40 mm/s
- CE approved
Technical Data

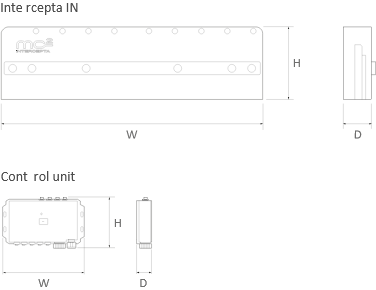

Barcode 8057090277449 Boat/Yacht Length 12-15 m / 40-50 ft (*) Intercepta IN Dimensions (W x D x H) 600 x 65 x 180 mm / 23,62 x 2,55 x 7,08 in Control Unit Dimensions (W x D x H) 267 x 51 x 168 mm / 12,51 x 2 x 6,61 in Weight 6,48 kg / 14,28 lb Stroke 50 mm / 1,96 in Power Supply 10-32 Vdc Blade Length 600 mm / 23,62 in Blade Speed Up to 40 mm/s / up to 1,57 in/s Battery Type Lead, AGM, Gel, Lithium Maximum Power Consumption 0,2 kW Auto Cleaning Yes (customizable) Transom Thickness 60 mm / 2,36 in Approval CE Maintenance Annual (lifting the boat)
Installation And System Arrangement
Intercepta IN60 features a fully external installation design that removes the need for internal mechanical components. The actuators connect directly to the supplied control unit for a fast and efficient setup process.
The included plug-and-play cables simplify installation, while the MC² Remote Control panel provides clear and responsive stabilization management during navigation.
Brand: Quick
-
