ID
1373825
$ 15,061.20
1-2 weeks delivery time
-
+
Quick Trim Tabs Intercepta IN100 is an automatic stabilization system for boats 18–30,5 m, delivering real-time pitch and roll correction with external actuators, plug-and-play installation, and MC² control for improved navigation stability.
- Description
- Ask a Question
-

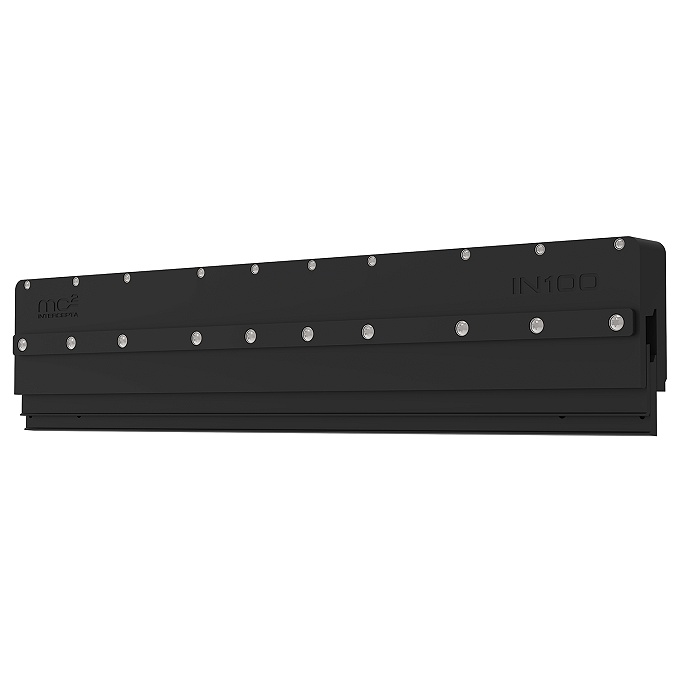

Quick Trim Tabs Intercepta IN100
Quick Intercepta IN100 trim tabs are designed for boats and yachts from 18-30,5 m / 60-100 ft. The system provides active pitch and roll stabilization with fully external electric actuators for reliable onboard comfort and navigation efficiency.
The plug-and-play package includes trim tabs, wiring, and a central control unit that continuously monitors and adjusts according to sea and navigation conditions. Controlled through the MC² Remote Control panel with a clear 3,5” display, the system ensures responsive and accurate stabilization performance.
Key Features
- Plug-and-play stabilization system
- Real-time active pitch and roll correction
- Fully external integrated electric actuators
- Compatible with Lead, AGM, Gel, and Lithium batteries
- Customizable auto cleaning function
- Space-saving installation solution
- Blade speed up to 40 mm/s
- CE approved
Technical Data

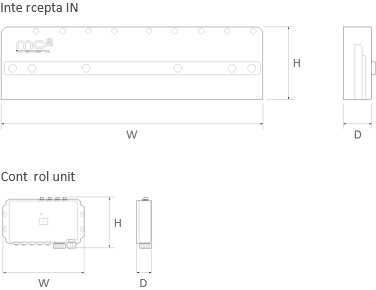

Barcode 8057090277562 Boat/Yacht Length 18-30,5 m / 60-100 ft (*) Intercepta IN Dimensions (W x D x H) 1000 x 65 x 180 mm / 39,37 x 2,55 x 7,08 in Control Unit Dimensions (W x D x H) 267 x 51 x 168 mm / 12,51 x 2 x 6,61 in Weight 10,20 kg / 22,48 lb Stroke 50 mm / 1,96 in Power Supply 10-32 Vdc Blade Length 1000 mm / 39,37 in Blade Speed Up to 40 mm/s / up to 1,57 in/s Battery Type Lead, AGM, Gel, Lithium Maximum Power Consumption 0,2 kW Auto Cleaning Yes (customizable) Transom Thickness 60 mm / 2,36 in Approval CE Maintenance Annual (lifting the boat)
Installation And System Arrangement
Intercepta IN100 is engineered for fast and efficient external installation without internal mechanical components. The actuators connect directly to the supplied control unit, simplifying setup and reducing onboard space requirements.
The included plug-and-play cables support straightforward installation, while the MC² Remote Control panel with a 3,5” display provides intuitive and precise stabilization management during navigation.
Brand: Quick
-
