Quick Trim Tabs Intercepta IN35 is an active stabilization system for boats 6-12 m, providing automatic pitch and roll control with external actuators, plug-and-play installation, and integrated electronic control for improved vessel stability.
- Description
- Ask a Question
-

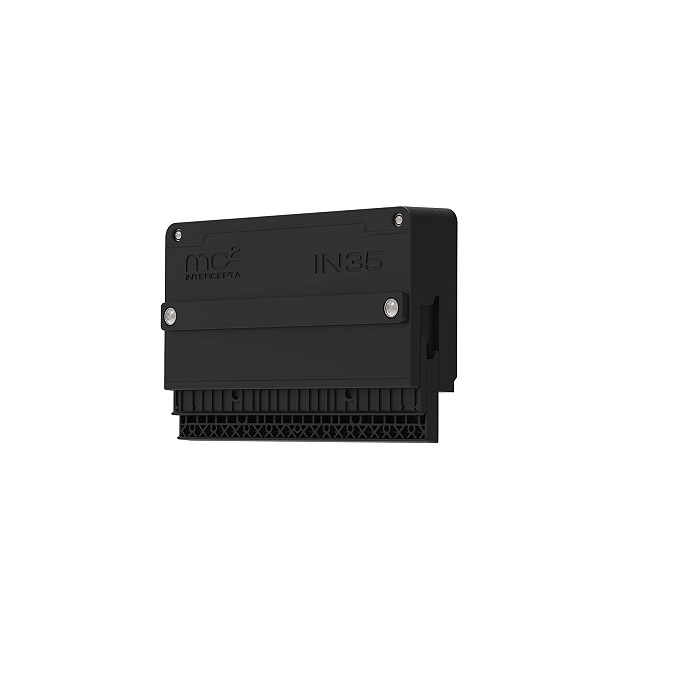

Quick Trim Tabs Intercepta IN35
Quick Intercepta IN35 trim tabs are designed for boats and yachts from 6-12 m / 20-40 ft. The system delivers active pitch and roll stabilization with fully external electric actuators for simplified installation and optimized onboard space management.
The plug-and-play package includes trim tabs, wiring, and a central control unit that automatically monitors and adjusts according to sea and navigation conditions. Managed through the MC² Remote Control panel with a 3,5” display, the system ensures efficient and responsive stabilization performance.
Key Features
- Plug-and-play installation system
- Active real-time pitch and roll stabilization
- Fully external integrated electric actuators
- Compatible with Lead, AGM, Gel, and Lithium batteries
- Auto cleaning function with customizable settings
- Suitable for vessels with limited engine room space
- Up to 40 mm/s blade speed
- CE approved
Technical Data

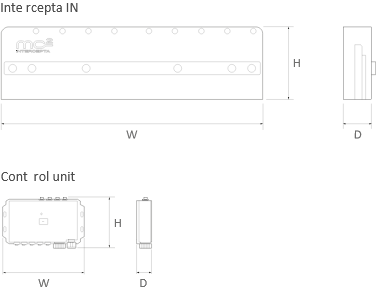

Barcode 8057090282917 Boat/Yacht Length 6-12 m / 20-40 ft (*) Intercepta IN Dimensions (W x D x H) 350 x 65 x 180 mm / 13,78 x 2,55 x 7,08 in Control Unit Dimensions (W x D x H) 267 x 51 x 168 mm / 12,51 x 2 x 6,61 in Weight 3,37 kg / 7,42 lb Stroke 50 mm / 1,96 in Power Supply 10-32 Vdc Blade Length 350 mm / 13,78 in Blade Speed Up to 40 mm/s / up to 1,57 in/s Battery Type Lead, AGM, Gel, Lithium Maximum Power Consumption 0,1 kW Auto Cleaning Yes (customizable) Transom Thickness 60 mm / 2,36 in Approval CE Maintenance Annual (lifting the boat)
Installation And System Arrangement
Intercepta IN35 is engineered for easy external installation without internal mechanical components. The actuators connect directly to the control unit, reducing installation complexity and saving onboard space.
The system includes all required plug-and-play cables for fast setup and reliable stabilization performance during navigation.
