Quick Trim Tabs Intercepta IN75 is designed for boats 15–18 m, providing automatic pitch and roll stabilization with external actuators, plug-and-play installation, and compact design for efficient onboard integration.
- Description
- Ask a Question
-

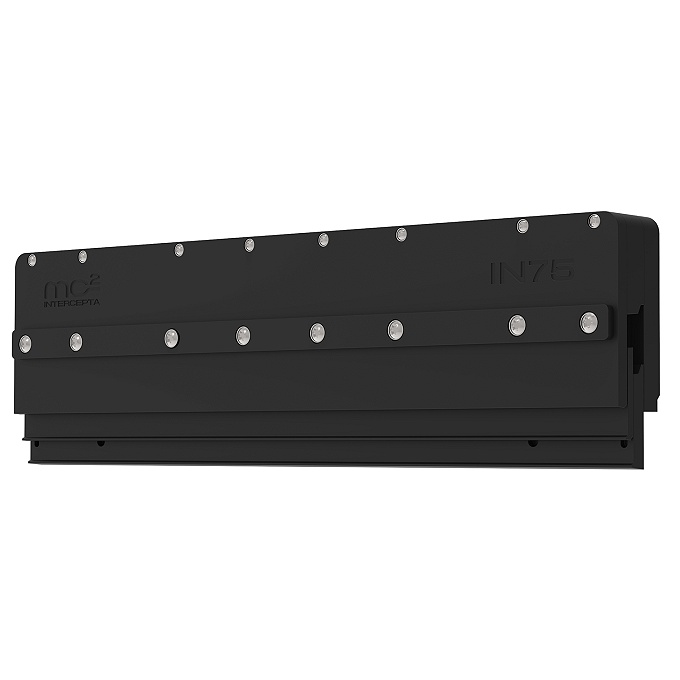

Quick Trim Tabs Intercepta IN75
Quick Intercepta IN75 trim tabs are engineered for boats and yachts from 15-18 m / 50-60 ft. The system delivers active stabilization by automatically controlling pitch and roll in real time for improved navigation comfort and stability.
The package includes trim tabs, wiring, and a central control unit with plug-and-play functionality. Fully external electric actuators reduce installation complexity and help optimize available onboard space.
Key Features
- Plug-and-play installation system
- Active pitch and roll stabilization
- Fully external integrated electric actuators
- Compatible with Lead, AGM, Gel, and Lithium batteries
- Customizable auto cleaning feature
- Compact system design for space-efficient installation
- Blade speed up to 40 mm/s
- CE approved
Technical Data

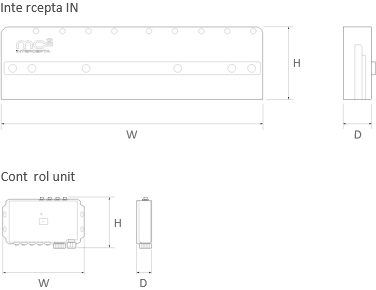

Barcode 8057090273847 Boat/Yacht Length 15-18 m / 50-60 ft (*) Intercepta IN Dimensions (W x D x H) 750 x 65 x 180 mm / 29,52 x 2,55 x 7,08 in Control Unit Dimensions (W x D x H) 267 x 51 x 168 mm / 12,51 x 2 x 6,61 in Weight 7,85 kg / 17,30 lb Stroke 50 mm / 1,96 in Power Supply 10-32 Vdc Blade Length 750 mm / 29,52 in Blade Speed Up to 40 mm/s / up to 1,57 in/s Battery Type Lead, AGM, Gel, Lithium Maximum Power Consumption 0,2 kW Auto Cleaning Yes (customizable) Transom Thickness 60 mm / 2,36 in Approval CE Maintenance Annual (lifting the boat)
Installation And System Arrangement
Intercepta IN75 is designed for easy external installation without internal components. The electric actuators connect directly to the control unit, helping reduce installation time and onboard space requirements.
The system includes all necessary plug-and-play cables and is managed through the MC² Remote Control panel with a clear 3,5” display for precise stabilization control.
