ID
1373822
$ 7,334.43
1-2 weeks delivery time
-
+
Quick Trim Tabs Intercepta IN45 is an active stabilization system for boats 9–12 m, delivering automatic pitch and roll control with external actuators, plug-and-play installation, and integrated electronic management for improved onboard stability.
- Description
- Ask a Question
-

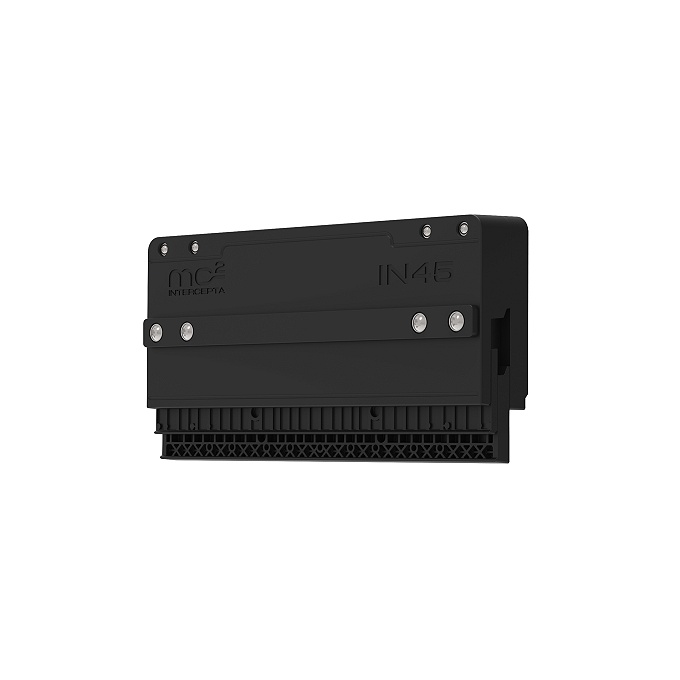

Quick Trim Tabs Intercepta IN45
Quick Intercepta IN45 trim tabs are developed for boats and yachts from 9-12 m / 30-40 ft. The system provides active stabilization by automatically controlling pitch and roll in real time for improved onboard comfort and navigation performance.
The package includes trim tabs, wiring, and a central control unit with plug-and-play functionality. Fully external electric actuators simplify installation while maximizing available engine room space.
Key Features
- Plug-and-play installation
- Real-time pitch and roll stabilization
- External integrated electric actuators
- Compatible with Lead, AGM, Gel, and Lithium batteries
- Customizable auto cleaning function
- Optimized for compact onboard installations
- Blade speed up to 40 mm/s
- CE approved
Technical Data

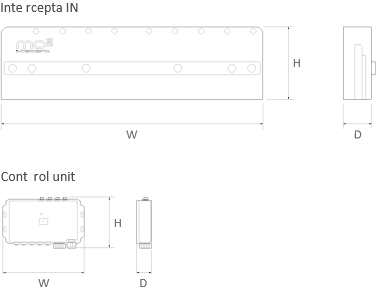

Barcode 8057090283631 Boat/Yacht Length 9-12 m / 30-40 ft (*) Intercepta IN Dimensions (W x D x H) 450 x 65 x 180 mm / 17,71 x 2,55 x 7,08 in Control Unit Dimensions (W x D x H) 267 x 51 x 168 mm / 12,51 x 2 x 6,61 in Weight 5,69 kg / 12,54 lb Stroke 50 mm / 1,96 in Power Supply 10-32 Vdc Blade Length 450 mm / 17,71 in Blade Speed Up to 40 mm/s / up to 1,57 in/s Battery Type Lead, AGM, Gel, Lithium Maximum Power Consumption 0,1 kW Auto Cleaning Yes (customizable) Transom Thickness 60 mm / 2,36 in Approval CE Maintenance Annual (lifting the boat)
Installation And System Arrangement
Intercepta IN45 features a fully external installation design without internal components, allowing a fast and efficient setup process. The actuators connect directly to the included control unit for reliable stabilization management.
The MC² Remote Control panel with a 3,5” display ensures simple operation, while the included plug-and-play cables support quick installation and stable onboard performance.
Brand: Quick
-
