The EWT 255BS wiper motor with a 90° wiping angle provides maximum coverage for HD1 systems, delivering 55Nm torque, dual-speed operation with interval, self-parking, and a durable bulkhead-mounted design for reliable performance.
- Description
- Ask a Question
-

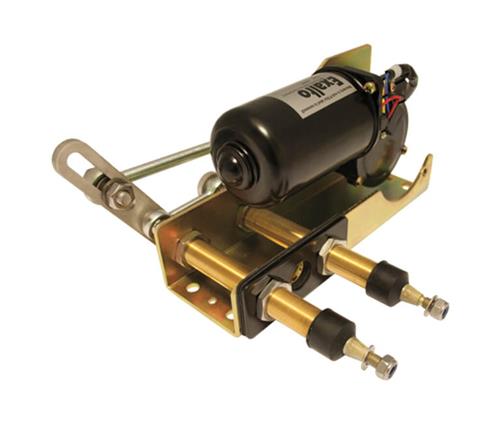

Exalto EWT Wiper 255BS 24V 90° 55Nm Bulkhead 8mm
The EWT 255BS with a 90° wiping angle offers maximum possible coverage within the HD1 series. Designed for 24V DC systems, it combines powerful torque, stable speed control, and a durable bulkhead-mounted construction.
Key Features
- Maximum 90° wiping angle
- 55 Nm torque output
- Dual-speed operation with interval
- Self-parking system
- Ungrounded design
Technical Data
Sales Unit 1 Pieces Series HD1 Suitable For HD1 Arm Type HD1 P10 Voltage 24 V Type VDC Power 96 W Torque 55 Nm Wiping Angle 90° High Speed 60 rpm Low Speed 38 rpm Maximum Amperage 4 A Recommended Fuse Rating 6 A Drive Shaft Diameter 20 mm Support Shaft Diameter 20 mm Maximum Arm Length 1000 mm Maximum Blade Length 1200 mm Wall Thickness 8 mm Driven Axles 2 Ungrounded yes
Brand: Exalto Wiper Technologies B.V. Article code: 212455.08-90 Barcode: 8720763559998
-
