ID
1344811
$ 1,086.16
1-2 weeks delivery time
-
+
The 50° EWT 255BS offers balanced wiping coverage with 55 Nm torque, interval speed control, and self-parking, designed for 35 mm bulkhead HD1 systems.
- Description
- Ask a Question
-

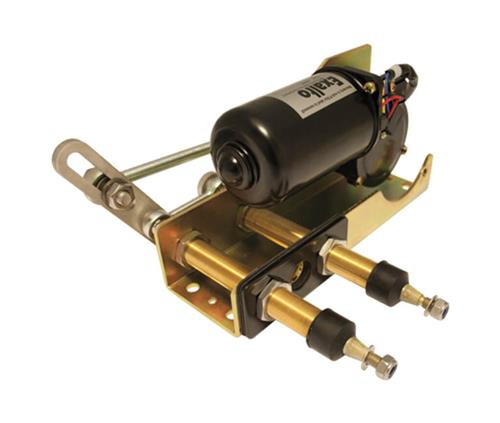

Exalto EWT Wiper 255BS 24V 50° 55Nm Bulkhead 35mm
The ungrounded EWT 255BS with a 50° wiping angle offers balanced coverage and high torque performance. Designed for HD1 systems and bulkhead mounting with 35 mm wall thickness, this motor ensures stable wiping through interval control and self-parking functionality.
Key Features
- 50° wiping angle
- 24 VDC heavy-duty motor
- 55 Nm torque output
- Speed interval control
- Self-parking function
- Bulkhead mounting for 35 mm walls
Technical Data

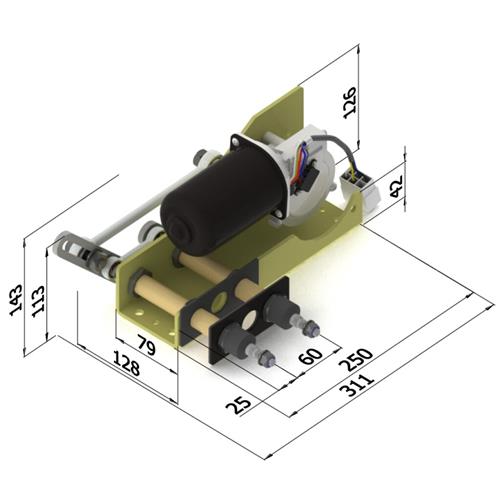

Sales Unit 1 Pieces Series HD1 Suitable For HD1 Arm Type HD1 P10 Voltage 24 V Type VDC Power 96 W Torque 55 Nm Wiping Angle 50° High Speed 60 rpm Low Speed 38 rpm Maximum Amperage 4 A Recommended Fuse Rating 6 A Drive Shaft Diameter 19 mm Support Shaft Diameter 20 mm Shaft Length 96 mm Distance HoH 60 mm Maximum Arm Length 1000 mm Maximum Blade Length 1200 mm Product Width 311 mm Product Depth 183 mm Product Height 134 mm Wall Thickness 35 mm Driven Axles 2
Brand: Exalto Wiper Technologies B.V. Article code: 212455.35-50 Barcode: 8720763560024
-
