The EWT 255BS 24V wiper motor with an 85° wiping angle offers near-maximum coverage with 55Nm torque, dual-speed operation, interval function, self-parking, and bulkhead mounting suitable for HD1 systems.
- Description
- Ask a Question
-

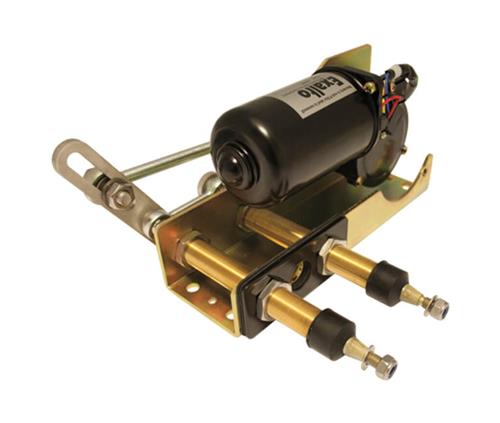

Exalto EWT Wiper 255BS 24V 85° 55Nm Bulkhead 8mm
This EWT 255BS variant provides an 85° wiping angle for near-maximum coverage while maintaining the robust HD1 specifications. It is suitable for bulkhead mounting and offers stable, controlled wiping with interval function and self-parking.
Key Features
- 85° wiping angle
- 55 Nm torque for demanding conditions
- Speed interval control
- Self-parking function
- Two driven axles
Technical Data
Sales Unit 1 Pieces Series HD1 Suitable For HD1 Arm Type HD1 P10 Voltage 24 V Type VDC Power 96 W Torque 55 Nm Wiping Angle 85° High Speed 60 rpm Low Speed 38 rpm Maximum Amperage 4 A Recommended Fuse Rating 6 A Drive Shaft Diameter 20 mm Support Shaft Diameter 20 mm Maximum Arm Length 1000 mm Maximum Blade Length 1200 mm Wall Thickness 8 mm Driven Axles 2 Ungrounded yes
Brand: Exalto Wiper Technologies B.V. Article code: 212455.08-85 Barcode: 8720763559981
-
