ID
1344813
$ 1,086.16
1-2 weeks delivery time
-
+
This 60° EWT 255BS variant combines high torque, dual-speed operation, interval control, and self-parking, designed for 35 mm bulkhead HD1 systems.
- Description
- Ask a Question
-

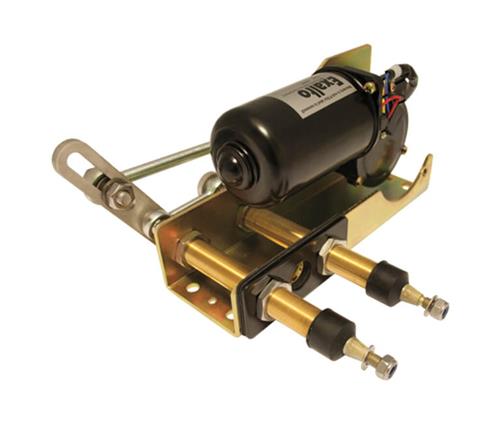

Exalto EWT Wiper 255BS 24V 60° 55Nm Bulkhead 35mm
This EWT 255BS variant offers a 60° wiping angle and is built for bulkhead installations with 35 mm wall thickness. It combines high torque output with stable dual-speed operation, interval control, and self-parking for dependable HD1 performance.
Key Features
- 60° wiping angle
- 55 Nm torque output
- Speed interval and self-parking
- Ungrounded design
- Bulkhead mounting
Technical Data

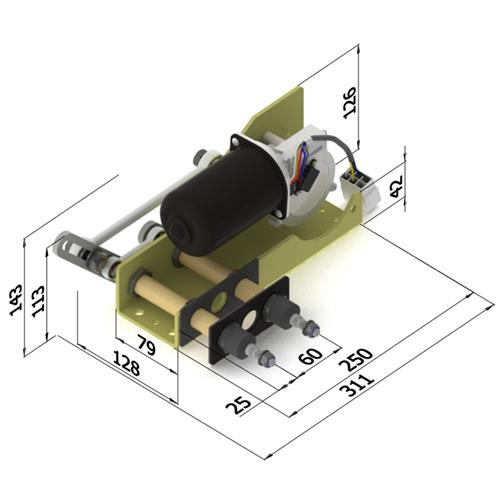

Sales Unit 1 Pieces Series HD1 Suitable For HD1 Arm Type HD1 P10 Voltage 24 V Type VDC Power 96 W Torque 55 Nm Wiping Angle 60° High Speed 60 rpm Low Speed 38 rpm Maximum Amperage 4 A Recommended Fuse Rating 6 A Drive Shaft Diameter 19 mm Support Shaft Diameter 20 mm Shaft Length 96 mm Distance HoH 60 mm Maximum Arm Length 1000 mm Maximum Blade Length 1200 mm Product Width 311 mm Product Depth 183 mm Product Height 134 mm Wall Thickness 35 mm Driven Axles 2 Ungrounded yes
Brand: Exalto Wiper Technologies B.V. Article code: 212455.35-60 Barcode: 8720763560048
-
