ID
1344814
$ 1,086.16
1-2 weeks delivery time
-
+
The 65° EWT 255BS wiper motor provides extended wiping coverage with 55 Nm torque, interval speed control, and self-parking, suitable for 35 mm bulkhead HD1 installations.
- Description
- Ask a Question
-

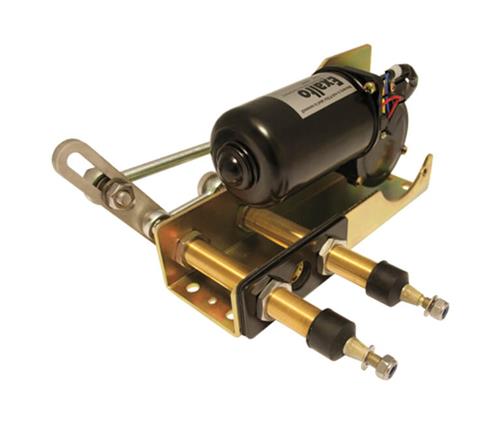

Exalto EWT Wiper 255BS 24V 65° 55Nm Bulkhead 35mm
The EWT 255BS with a 65° wiping angle is designed for applications requiring extended wiping coverage. It maintains the proven HD1 specifications, offering powerful torque, interval speed control, and self-parking in a durable bulkhead-mounted design.
Key Features
- 65° wiping angle
- 55 Nm torque for heavy-duty wiping
- 24 VDC operation
- Speed interval control
- Self-parking system
Technical Data

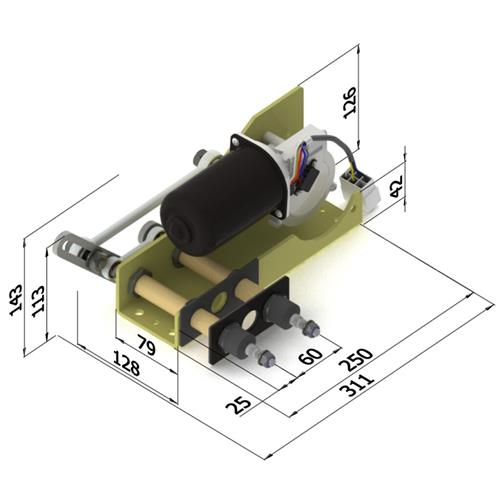

Sales Unit 1 Pieces Series HD1 Suitable For HD1 Arm Type HD1 P10 Voltage 24 V Type VDC Power 96 W Torque 55 Nm Wiping Angle 65° High Speed 60 rpm Low Speed 38 rpm Maximum Amperage 4 A Recommended Fuse Rating 6 A Drive Shaft Diameter 19 mm Support Shaft Diameter 20 mm Shaft Length 96 mm Distance HoH 60 mm Maximum Arm Length 1000 mm Maximum Blade Length 1200 mm Product Width 311 mm Product Depth 183 mm Product Height 134 mm Wall Thickness 35 mm Driven Axles 2 Ungrounded yes
Brand: Exalto Wiper Technologies B.V. Article code: 212455.35-65 Barcode: 8720763560055
-
