ID
1344801
$ 1,064.87
1-2 weeks delivery time
-
+
The EWT 255BS wiper motor with a 55° wiping angle provides wide coverage with 55Nm torque, dual-speed operation, interval function, self-parking, and compatibility with HD1 bulkhead installations.
- Description
- Ask a Question
-

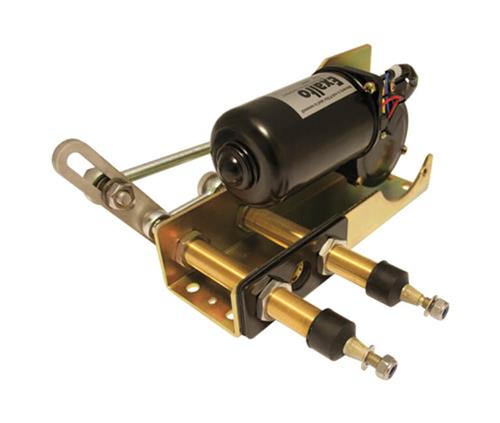

Exalto EWT Wiper 255BS 24V 55° 55Nm Bulkhead 8mm
This EWT 255BS wiper motor version provides a 55° wiping angle while maintaining the same electrical and mechanical characteristics as the HD1 series. It is suitable for bulkhead installation and supports long wiper arms and blades for extended wiping coverage.
Key Features
- 55° wiping angle
- 55 Nm torque output
- Speed interval and self-parking
- Ungrounded construction
- Compatible with HD1 systems
Technical Data
Sales Unit 1 Pieces Series HD1 Suitable For HD1 Arm Type HD1 P10 Voltage 24 V Type VDC Power 96 W Torque 55 Nm Wiping Angle 55° High Speed 60 rpm Low Speed 38 rpm Maximum Amperage 4 A Recommended Fuse Rating 6 A Drive Shaft Diameter 20 mm Support Shaft Diameter 20 mm Maximum Arm Length 1000 mm Maximum Blade Length 1200 mm Wall Thickness 8 mm Driven Axles 2
Brand: Exalto Wiper Technologies B.V. Article code: 212455.08-55 Barcode: 8720763559929
-
