ID
1344800
$ 1,064.87
1-2 weeks delivery time
-
+
The EWT 255BS 24V wiper motor with a 50° wiping angle offers reliable performance for professional applications, supporting HD1 arms and blades with dual-speed operation, interval function, self-parking, and 55Nm torque.
- Description
- Ask a Question
-

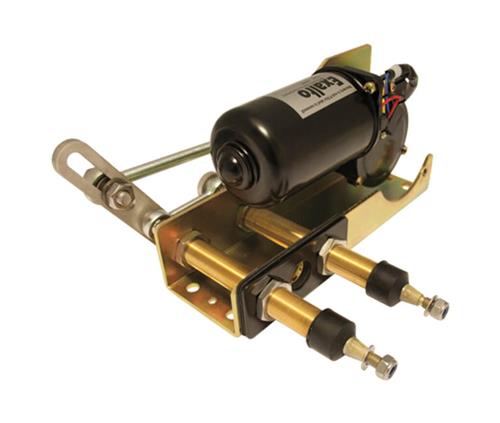

Exalto EWT Wiper 255BS 24V 50° 55Nm Bulkhead 8mm
The EWT 255BS wiper motor is designed for professional applications where reliability and consistent wiping performance are required. This 24V DC bulkhead-mounted unit delivers a torque of 55 Nm and operates with two driven axles. It supports HD1 arm systems and provides controlled wiping with interval function and self-parking.
Key Features
- 24 VDC wiper motor with 55 Nm torque
- 50° wiping angle
- Bulkhead mounting with 8 mm wall thickness
- Speed interval function
- Self-parking
- Ungrounded design
- Two driven axles
Technical Data
Sales Unit 1 Pieces Series HD1 Suitable For HD1 Arm Type HD1 P10 Voltage 24 V Type VDC Power 96 W Torque 55 Nm Wiping Angle 50° High Speed 60 rpm Low Speed 38 rpm Maximum Amperage 4 A Recommended Fuse Rating 6 A Drive Shaft Diameter 20 mm Support Shaft Diameter 20 mm Maximum Arm Length 1000 mm Maximum Blade Length 1200 mm Wall Thickness 8 mm Driven Axles 2
Brand: Exalto Wiper Technologies B.V. Article code: 212455.08-50 Barcode: 8720763559912
-
