ID
1344803
$ 1,064.87
1-2 weeks delivery time
-
+
The EWT 255BS 24V wiper motor with a 65° wiping angle ensures wide coverage and 55Nm torque, featuring interval speed control, self-parking, and bulkhead mounting for demanding HD1 applications.
- Description
- Ask a Question
-

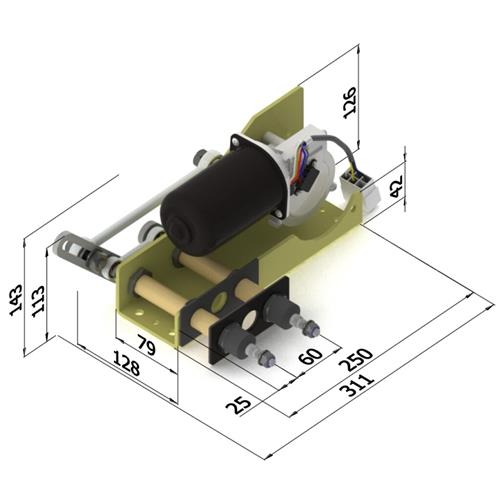

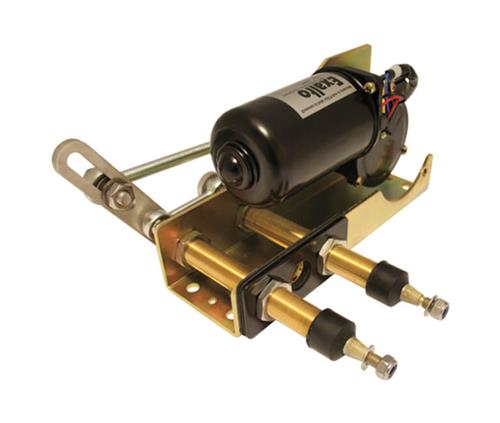

Exalto EWT Wiper 255BS 24V 65° 55Nm Bulkhead 8mm
The EWT 255BS wiper motor with a 65° wiping angle is engineered for demanding HD1 applications. Operating on 24V DC, this bulkhead-mounted unit delivers a constant 55 Nm torque and supports long wiper arms and blades. Interval speed control and self-parking ensure precise and reliable wiping performance.
Key Features
- 24 VDC wiper motor for professional use
- 65° wiping angle for wide coverage
- 55 Nm torque output
- Speed interval function
- Self-parking system
- Bulkhead mounting with 8 mm wall thickness
- Two driven axles
Technical Data
Sales Unit 1 Pieces Series HD1 Suitable For HD1 Arm Type HD1 P10 Voltage 24 V Type VDC Power 96 W Torque 55 Nm Wiping Angle 65° High Speed 60 rpm Low Speed 38 rpm Maximum Amperage 4 A Recommended Fuse Rating 6 A Drive Shaft Diameter 20 mm Support Shaft Diameter 20 mm Maximum Arm Length 1000 mm Maximum Blade Length 1200 mm Wall Thickness 8 mm Driven Axles 2 Ungrounded and
Brand: Exalto Wiper Technologies B.V. Article code: 212455.08-65 Barcode: 8720763559943
-
