ID
1344798
$ 1,064.87
1-2 weeks delivery time
-
+
The EWT Wiper 255BS 24V with a 40° angle provides controlled wiping coverage with 55Nm torque, dual-speed operation, interval function, and self-parking, ideal for precise HD1 system installations.
- Description
- Ask a Question
-

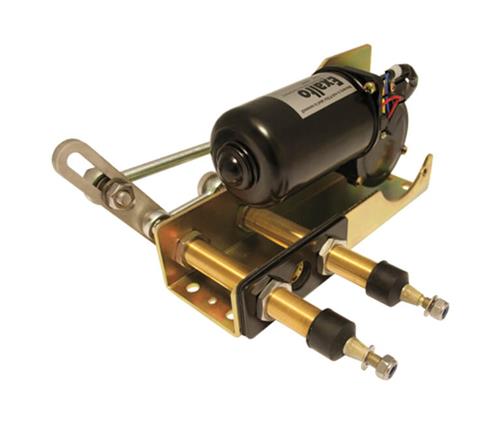

Exalto EWT Wiper 255BS 24V 40° 55Nm Bulkhead 8mm
This EWT Wiper 255BS 24V wiper motor features a fixed 40° angle for controlled wiping coverage. With 55Nm torque, dual-speed performance, and self-parking, it is suitable for HD1 installations requiring accuracy and durability.
Key Features
- 40° wiping angle
- 55Nm torque output
- Two-speed motor with interval function
- Self-parking capability
- Bulkhead mounting construction
- Ungrounded design
Technical Data
Sales Unit 1 Pieces Series HD1 Suitable For HD1 Arm Type HD1 P10 Wiping Angle (°) 40° Voltage (V) 24 Type VDC Power (W) 96 Torque (Nm) 55 Driven Axles 2 High Speed (rpm) 60 Low Speed (rpm) 38 Speed Interval Yes Self-Parking Yes Maximum Amperage (A) 4 Recommended Fuse Rating (A) 6 Drive Shaft Diameter (mm) 20 Support shaft Diameter (mm) 20 Maximum Arm Length (mm) 1000 Maximum Blade Length (mm) 1200 Wall Thickness (mm) 8 Ungrounded Yes
Brand: Exalto Wiper Technologies B.V. Article code: 212455.08-40 Barcode: 8720763559899
-
