ID
1345413
$ 436.53
1-2 weeks delivery time
-
+
Exalto 223BS 12V wiper with 55° angle of view, designed for MD1 series bulkhead mounting with 20 mm wall thickness. Pendulum arm system with self-parking, speed interval and 23 Nm torque for reliable marine use.
- Description
- Ask a Question
-

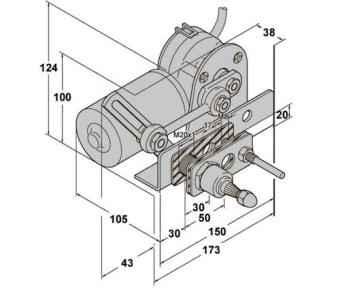

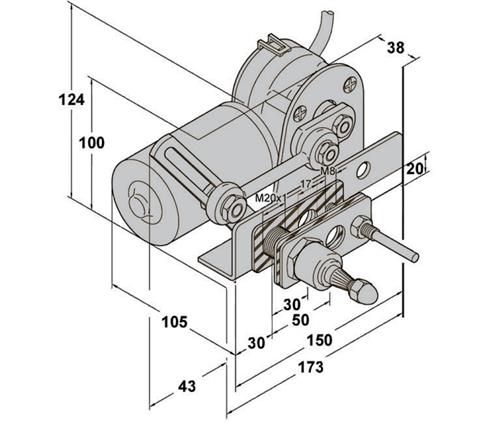

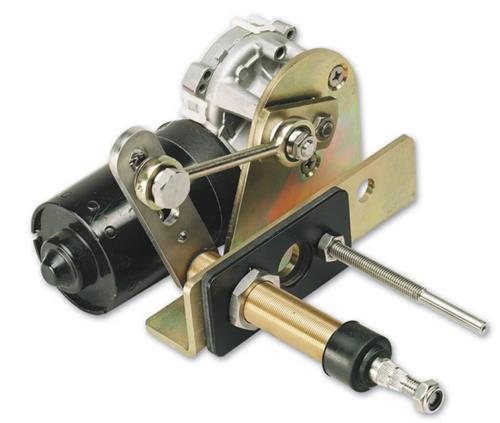

Exalto Wiper 223BS 12V 55° 23Nm Bulkhead 20mm
The Exalto 223BS wiper is a robust 12V pendulum arm wiper designed for the MD1 series. It features a 55° angle of view and delivers a torque of 23Nm, making it suitable for demanding marine applications. This wiper includes self-parking and speed interval functions, ensuring efficient and reliable operation.
Key Features
- Voltage: 12V DC
- Angle of View: 55°
- Torque: 23 Nm
- Self-Parking: Yes
- Speed Interval: Yes
- Drive Shaft Diameter: 19 mm
- Suitable for MD1 Series
- Wall Thickness Compatibility: 20 mm
- Power Consumption: 36 W
Technical Specifications
Article XA2167.30-55 Sales Unit 1 piece Distance HoH (mm) 50 Arm Type MD1 Pendulum Shaft Length (mm) 76 Recommended Fuse Rating (A) 6 Ungrounded Yes Driven Axles 1 Maximum Ampèrage (A) 3 Maximum Arm Length (mm) 750 Maximum Blade Length (mm) 750 Product Dimensions (W x D x H mm) 150 x 185 x 90 Series MD1 Type Voltage VDC Shaft Support Diameter (mm) 6.4 High Speed (rpm) 60 Low Speed (rpm) 40 EAN Code 8720763541870
Brand: Exalto Wiper Technologies B.V. Article code: XA2167.30-55
-
