ID
1345414
$ 436.53
1-2 weeks delivery time
-
+

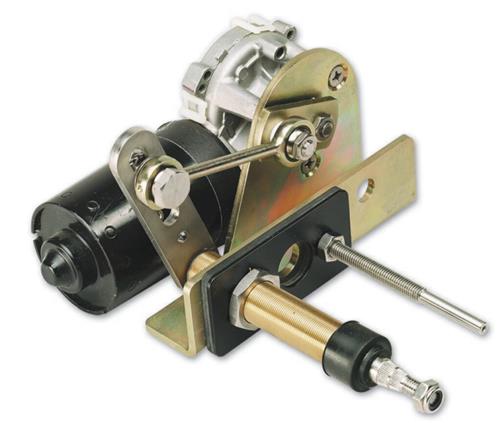

Exalto 223BS 12V wiper with 60° wiping angle for MD1 series bulkhead installation on 20 mm walls. Features pendulum arm design, self-parking, speed interval and 23 Nm torque.
- Description
- Ask a Question
-
Exalto Wiper 223BS 12V 60° 23Nm Bulkhead 20mm
This Exalto 223BS wiper model operates at 12V with a 60° angle of view and 23Nm torque. It is designed for the MD1 series and includes features such as speed interval and self-parking for versatile marine use. The sturdy construction fits a 20mm bulkhead wall thickness.
Key Features
- Voltage: 12V DC
- Angle of View: 60°
- Torque: 23 Nm
- Self-Parking: Yes
- Speed Interval: Yes
- Drive Shaft Diameter: 19 mm
- Suitable for MD1 Series
- Wall Thickness Compatibility: 20 mm
- Power Consumption: 36 W
Technical Specifications
Article XA2167.30-60 Sales Unit 1 piece Distance HoH (mm) 50 Arm Type MD1 Pendulum Shaft Length (mm) 76 Recommended Fuse Rating (A) 6 Ungrounded Yes Driven Axles 1 Maximum Ampèrage (A) 3 Maximum Arm Length (mm) 750 Maximum Blade Length (mm) 750 Product Dimensions (W x D x H mm) 150 x 185 x 90 Series MD1 Type Voltage VDC Shaft Support Diameter (mm) 6.4 High Speed (rpm) 60 Low Speed (rpm) 40 EAN Code 8720763541887
Brand: Exalto Wiper Technologies B.V. Article code: XA2167.30-60
-
