ID
1345213
$ 434.81
1-2 weeks delivery time
-
+
Exalto EWT 223BD 12V 75° bulkhead-mounted wiper motor for the MD1 series, featuring a pendulum arm, interval wiping, and self-parking. It offers extended wiping coverage while maintaining a compact and robust design.
- Description
- Ask a Question
-

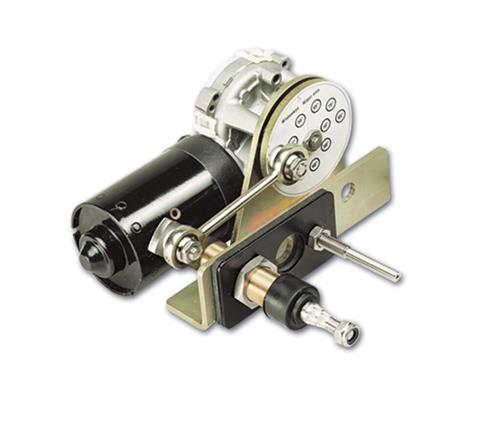

Exalto EWT Wiper 223BD 12V 75° 23Nm Bulkhead 20mm
The Exalto EWT 223BD 12V wiper motor with a 75° angle of view provides extended wiping coverage while maintaining compact bulkhead-mounted dimensions. Designed for the MD1 series, it includes a pendulum arm type, interval wiping, and a self-parking system for dependable performance.
Key Features
- Bulkhead-mounted design
- 75° angle of view for wide coverage
- Pendulum arm configuration
- Speed interval and self-parking
- Ungrounded 12V DC operation
Technical Data
Article Code XA2165.30-75 Sales Unit 1 piece EAN Code 8720763538764 Voltage 12 VDC Type VDC Power 36 W Torque 23 Nm Angle of View 75° Driven Axles 1 High Speed 56 rpm Low Speed 38 rpm Maximum Amperage 3 A Recommended Fuse Rating 6 A Drive Shaft Diameter 19 mm Shaft Length 76 mm Distance HoH 50 mm Wall Thickness 20 mm Support Diameter 6.4 mm Maximum Arm Length 750 mm Maximum Blade Length 800 mm Product Width 180 mm Product Depth 189.5 mm Product Height 108 mm Series MD1 Suitable For MD1 series Arm Type PENDULUM Speed Interval Yes Self-Parking Yes Ungrounded Yes
Brand: Exalto Wiper Technologies B.V. | Article code: XA2165.30-75 | Barcode: 8720763538764
-
