ID
1345212
$ 434.81
1-2 weeks delivery time
-
+

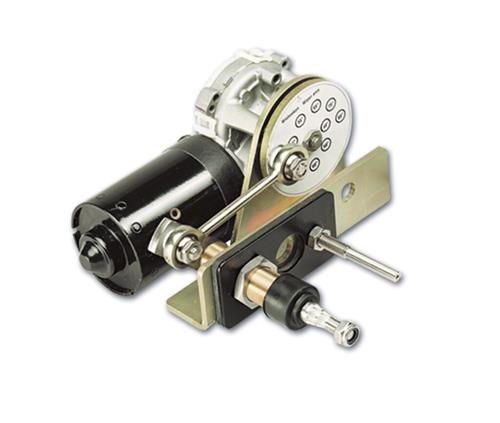

Exalto EWT 223BD 12V 70° wiper motor designed for bulkhead mounting, equipped with a pendulum arm, interval control, and self-parking. With 23 Nm torque, it delivers reliable performance where wide wiping coverage is required.
- Description
- Ask a Question
-
Exalto EWT Wiper 223BD 12V 70° 23Nm Bulkhead 20mm
The Exalto EWT 223BD 12V wiper motor with a 70° angle of view is engineered for bulkhead installation within the MD1 series. This model features a pendulum arm type, speed interval control, and a self-parking function. With a torque output of 23 Nm, it delivers reliable wiping performance for marine and industrial applications requiring wide coverage.
Key Features
- Bulkhead-mounted wiper motor
- Wide 70° angle of view
- Pendulum arm type
- Speed interval control
- Self-parking function
- Ungrounded 12V DC system
- Suitable for MD1 series
Technical Data
Article Code XA2165.30-70 Sales Unit 1 piece EAN Code 8720763538757 Voltage 12 VDC Type VDC Power 36 W Torque 23 Nm Angle of View 70° Driven Axles 1 High Speed 56 rpm Low Speed 38 rpm Maximum Amperage 3 A Recommended Fuse Rating 6 A Drive Shaft Diameter 19 mm Shaft Length 76 mm Distance HoH 50 mm Wall Thickness 20 mm Support Diameter 6.4 mm Maximum Arm Length 750 mm Maximum Blade Length 800 mm Product Width 180 mm Product Depth 189.5 mm Product Height 108 mm Series MD1 Suitable For MD1 series Arm Type PENDULUM Speed Interval Yes Self-Parking Yes Ungrounded Yes
Brand: Exalto Wiper Technologies B.V. | Article code: XA2165.30-70 | Barcode: 8720763538757
-
