ID
1368738
$ 145.29
1-2 weeks delivery time
-
+
Scout PF AN NAIS005T is a compact 1.2 m AIS-tuned fiberglass antenna with 3 dB gain, IP69 waterproof rating, 6 m RG-58 cable, and optimized performance for 161.975–162.025 MHz.
- Description
- Ask a Question
-
Scout PF AN NAIS005T - Ks-31 3 Db Ais Fiberglass Antenna 1.2 M Titan Series
Overview

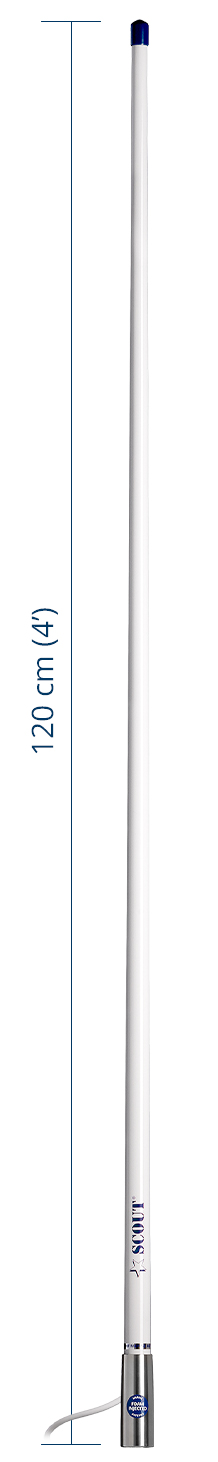

The KS-31 is a reduced-size high performance VHF antenna from the Titan Series. It combines robustness and performance comparable to 8′ antennas in a compact 4′ (1.2 m) design. Built for AIS frequency optimization to improve target and vessel detection in marine environments.

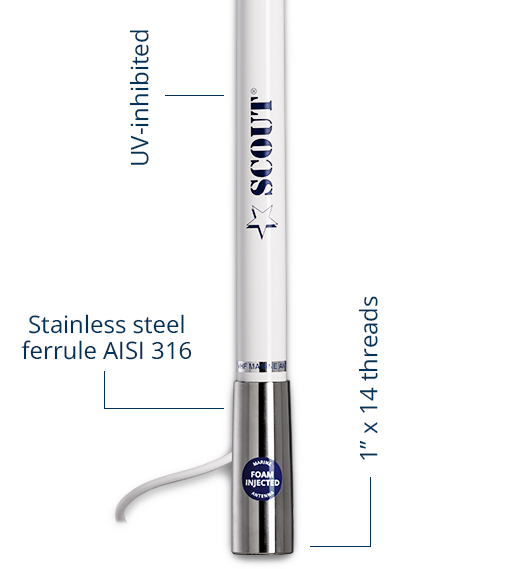

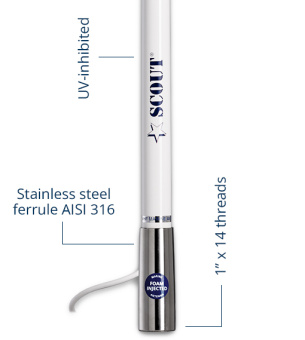

The antenna is constructed with a solid 2 mm thick fiberglass body and an electropolished AISI 316 stainless steel ferrule with an exclusive conical design. It is specifically tuned to the AIS frequency range (161.975–162.025 MHz) for maximum reception performance.

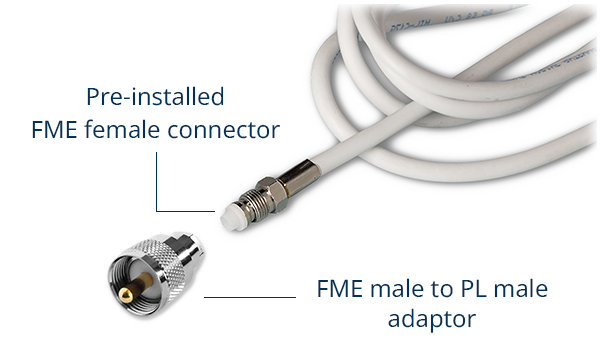

It is supplied with a 6 m (20′) low-loss RG-58 coaxial cable with a pre-installed FME female connector for quick installation without soldering. An FME male / PL male adaptor is also included. The cable can be routed through the ferrule side opening or bottom exit depending on mounting configuration, and a closing cap is included to seal the side hole when not used.
Internal construction uses solid brass and copper elements combined with Scout foam injection technology, achieving IP69 water resistance. The antenna is finished with a high gloss anti-UV coating for durability in marine conditions.
Key Features
- AIS tuned frequency: 161.975–162.025 MHz
- Compact 1.2 m design with 4′ performance class
- 2 mm fiberglass reinforced body
- AISI 316 stainless steel ferrule with conical design
- IP69 water resistance rating
- 6 m RG-58 low-loss coax cable
- FME female connector pre-installed
- FME male / PL male adaptor included
- Flexible cable routing with side or bottom exit
- Protective closing cap for ferrule side hole
Technical Data
Article Number PF AN NAIS005T EAN Code 8052990122622 Pack Units Piece Frequency 161.975–162.025 MHz Impedance 50 ohm Electrical Length 1/2 λ V.S.W.R. < 1.5:1 Polarization Vertical Gain 3 dB Max Power Input 50 W DC Ground Yes Body Material Fiberglass Coaxial Cable 6 m RG-58 CU MIL with FME female connector Mounting 1″ x 14 thread Length 1.2 m Weight 0.70 kilo
Brand: Scout
-
