ID
1368737
$ 44.24
1-2 weeks delivery time
-
+
Scout PF AC AMP05 is a Sea-Hub Plus power cable with 4-way screw terminal and color-coded wiring, supporting 9–30 V DC input and providing 200 cm of flexible installation length.
- Description
- Ask a Question
-

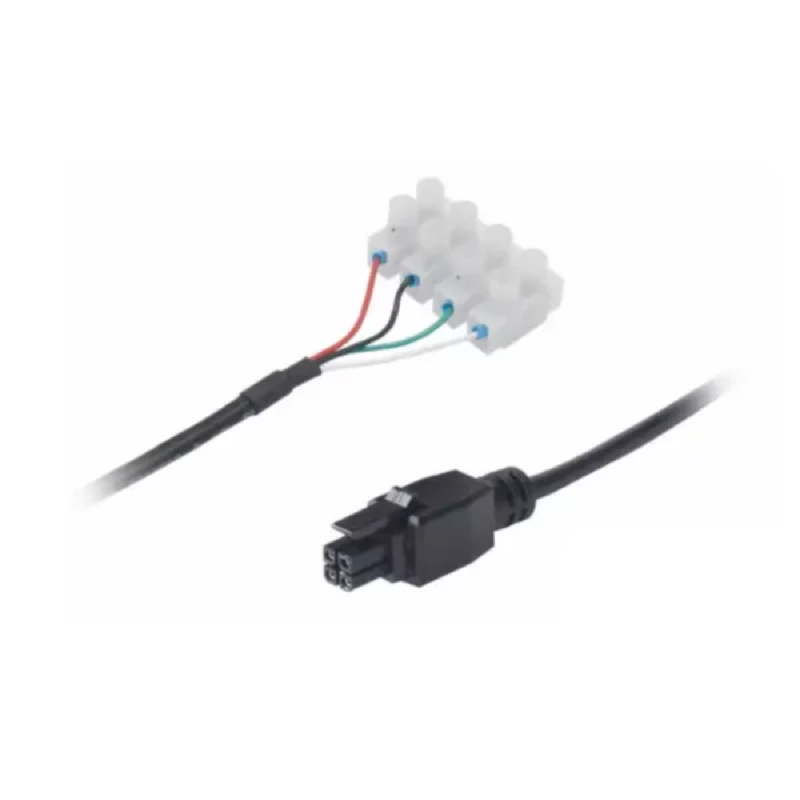

Scout PF AC AMP05 - Pi-4 Power Cable With 4-Way Screw Terminal For Sea-Hub Plus
Overview
Power cable with 4-way screw terminal designed for Sea-Hub Plus installations. Provides flexible and secure wiring options with clear color-coded conductors. Suitable for professional DC power distribution in marine and technical environments.
Features
- 4-way screw terminal connection
- Color-coded wiring for easy installation
- Stable 9-30 VDC input range
- Compact 4-pin, 3 mm pitch output
- Cable length: 200 cm
Technical Data
Article Number 109100 Original Article Number PF AC AMP05 EAN Code 8052990121472 Pack Units Piece Input Voltage 9-30 VDC Output Connector 4-pin, 3 mm pitch Wire Size 4×0.129 mm² (26 AWG) Cable Length 200 cm Color Coding Red = Power +, Black = Ground –, Green = Input/Output/NC, White = Input/Output/NC
Brand: Scout
-
