KS-41 Black PF AN NVHF00045T is a 1.2 m VHF fiberglass antenna with 3 dB gain and 156–162 MHz tuning, featuring a black UV-resistant finish, stainless steel ferrule, IP69 protection, and 6 m RG-58 cable with FME connector for quick setup.
- Description
- Ask a Question
-
Scout PF AN NVHF00045T - Ks-41 Black 3 Db VHF Fiberglass Antenna 1.2 M Titan Series
Overview
The KS-41 Black Edition is a reduced-size high performance VHF antenna from the Titan Series. It combines the performance of full-size 8′ antennas with a compact 1.2 m (4′) structure designed for powerboats and marine installations.

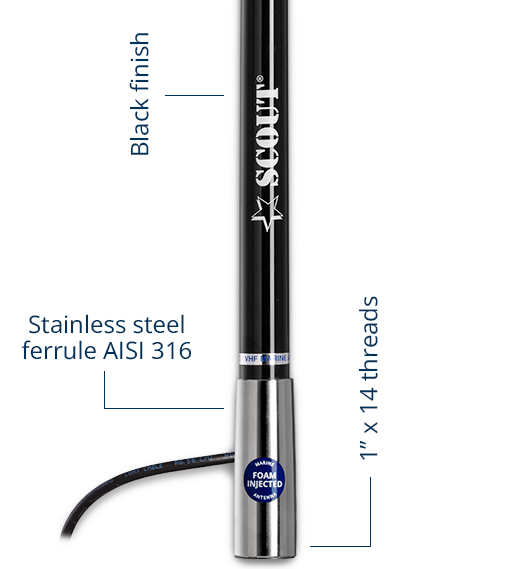

Built with a solid 2 mm fiberglass body and an electropolished AISI 316 stainless steel ferrule with an exclusive conical design. It is optimized for VHF frequency range 156–162 MHz and delivers 3 dB gain performance.

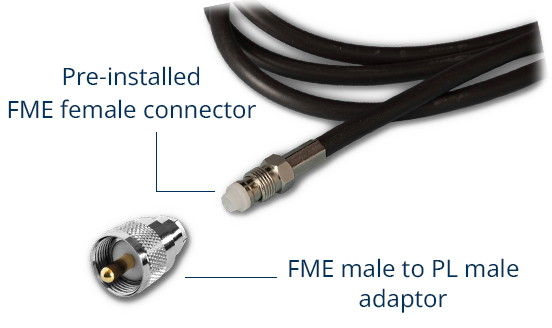

The antenna is supplied with a 6 m (20′) low-loss RG-58 coax cable with pre-installed FME female connector for quick installation without soldering. An FME male / PL male adaptor is included for flexible connection options.
Cable routing can be done through the ferrule side opening or bottom exit depending on mounting setup. A closing cap is included for sealing the side hole when not used.
Internal construction uses brass and copper elements combined with Scout foam injection technology for IP69 water resistance. The Black Edition features a high gloss black finish with anti-UV protection for premium marine aesthetics and durability.
Key Features
- VHF frequency range 156–162 MHz

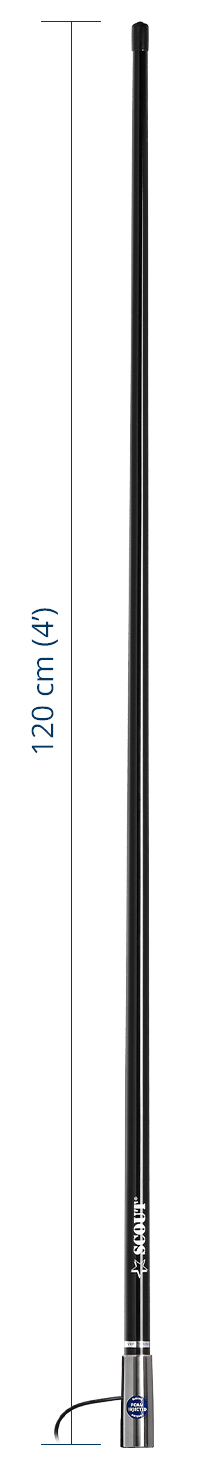

- Compact 1.2 m (4′) Titan Series design
- 3 dB gain performance
- 2 mm solid fiberglass body construction
- AISI 316 stainless steel ferrule
- IP69 water resistance rating
- 6 m RG-58 low-loss coax cable
- Pre-installed FME female connector
- FME male / PL male adaptor included
- Black high gloss anti-UV finish
- Flexible cable routing with side or bottom exit
Technical Data
Article Number PF AN NVHF00045T Pack Units Piece Frequency 156–162 MHz Impedance 50 ohm Electrical Length 1/2 λ V.S.W.R. < 1.5:1 Polarization Vertical Gain 3 dB Max Power Input 50 W DC Ground Yes Body Material Fiberglass Coaxial Cable 6 m RG-58 CU MIL with FME female connector Mounting 1″ x 14 thread Length 1.2 m Weight 0.70 kilo
Brand: Scout
-
