KS-41 PF AN NVHF00044T is a compact 1.2 m VHF fiberglass antenna with 3 dB gain, built from 2 mm fiberglass with AISI 316 ferrule, tuned for 156–162 MHz, supplied with 6 m RG-58 cable and FME connector for easy marine installation.
- Description
- Ask a Question
-
Scout PF AN NVHF00044T - Ks-41 3 Db VHF Fiberglass Antenna 1.2 M Titan Series
Overview

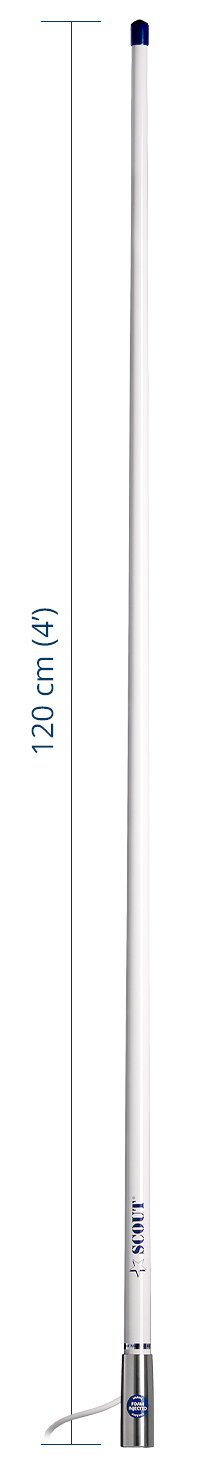

The KS-41 is a reduced-size high performance VHF antenna from the Titan Series. It delivers the performance and robustness of 8′ antennas in a compact 4′ (1.2 m) design. Built for marine communication, it is optimized for reliable VHF transmission in demanding environments.

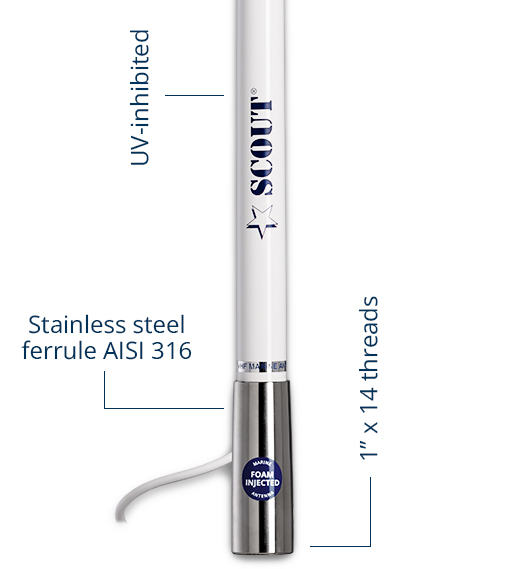

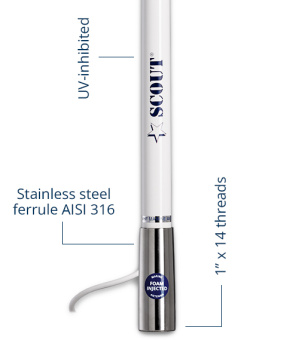

Constructed with a solid 2 mm fiberglass body and an electropolished AISI 316 stainless steel ferrule with an exclusive conical design. The antenna is tuned for the VHF frequency range 156–162 MHz and delivers stable signal performance with 3 dB gain.

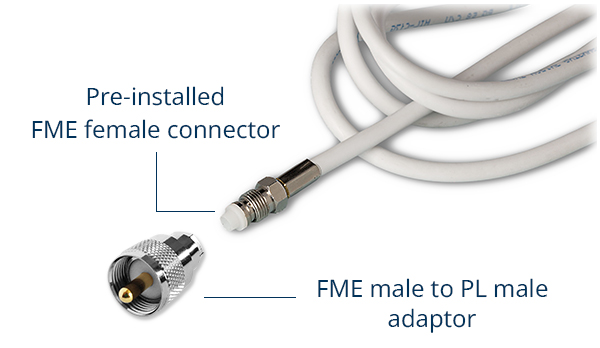

It is supplied with a 6 m (20′) low-loss RG-58 coax cable with a pre-installed FME female connector for fast installation without soldering. An FME male / PL male adaptor is included.

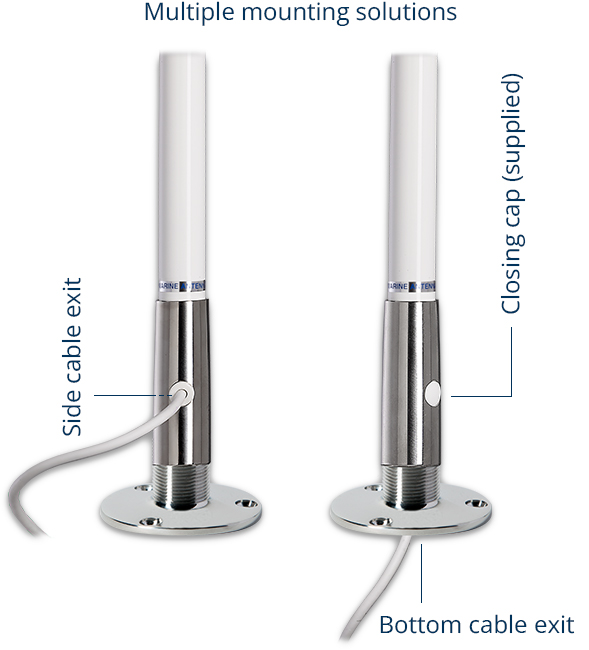

The cable can be routed through the ferrule side opening or bottom exit depending on installation. A closing cap is included to seal the side hole when not used.
The internal structure uses solid brass and copper elements combined with Scout foam injection technology, achieving IP69 water resistance. A high gloss anti-UV finish ensures long-term durability in marine conditions.
Key Features
- VHF frequency range 156–162 MHz
- Compact 1.2 m (4′) high performance design
- 3 dB gain antenna performance
- 2 mm solid fiberglass body
- AISI 316 stainless steel ferrule with conical design
- IP69 water resistance rating
- 6 m RG-58 low-loss coax cable
- Pre-installed FME female connector
- FME male / PL male adaptor included
- Flexible cable routing system with side or bottom exit
- Protective closing cap for ferrule side hole
Technical Data
Article Number PF AN NVHF00044T EAN Code 8052990122578 Pack Units Piece Frequency 156–162 MHz Impedance 50 ohm Electrical Length 1/2 λ V.S.W.R. < 1.5:1 Polarization Vertical Gain 3 dB Max Power Input 50 W DC Ground Yes Body Material Fiberglass Coaxial Cable 6 m RG-58 CU MIL with FME female connector Mounting 1″ x 14 thread Length 1.2 m Weight 0.70 kilo
