Scout PF AN NAMFM012T is a black 1.2 m AM-FM marine antenna with UV-resistant finish, stainless steel ferrule, IP69 waterproof construction, and 6 m shielded cable for direct installation.
- Description
- Ask a Question
-
Scout PF AN NAMFM012T - Ks-120 Black Am-Fm Fiberglass Antenna 1.2 M Titan Series
Overview
The KS-120 Black Edition is a high performance AM-FM marine antenna with a reduced-size 1.2 m (4′) design. It combines robustness and transmission performance equivalent to larger 8′ antennas.

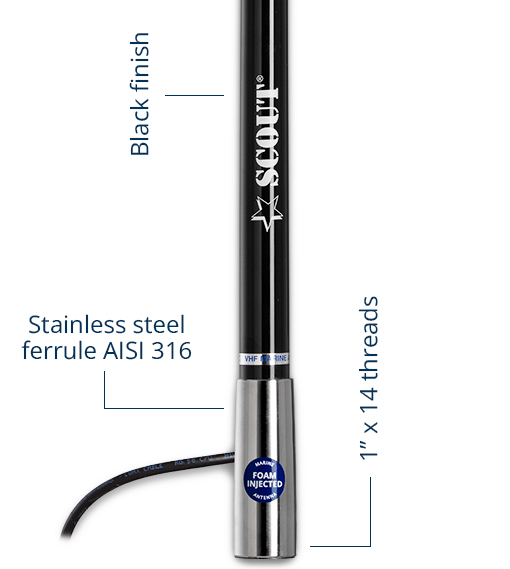

It is constructed from a solid 2 mm fiberglass body with an electropolished AISI 316 stainless steel ferrule in an exclusive conical design. Internal brass and copper elements combined with Scout foam injection technology ensure IP69 water resistance.

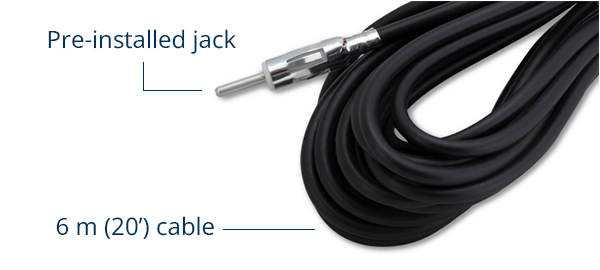

The antenna is supplied with a 6 m (20′) shielded cable with pre-installed jack for direct radio connection without soldering. The Black Edition features a high gloss black UV-resistant finish designed for premium marine installations.
Key Features
- AM-FM frequency range 88–108 MHz

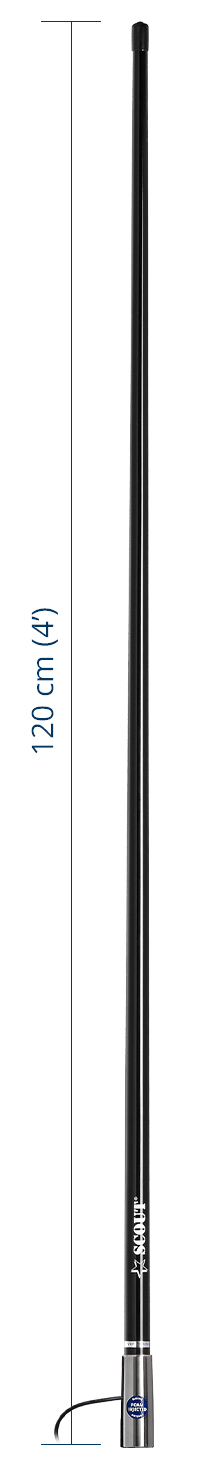

- Compact 1.2 m high performance design
- 2 mm fiberglass reinforced body
- Stainless steel AISI 316 ferrule
- IP69 water resistance rating
- 6 m shielded cable with pre-installed jack
- Black high gloss UV-resistant finish
- Marine-grade internal brass and copper structure
Technical Data
Article Number PF AN NAMFM012T EAN Code 8052990122608 Pack Units Piece Frequency 88–108 MHz Impedance 75 Ohm Body Material Fiberglass Cable 6 m AM-FM shielded cable with jack Mounting 1″ x 14 thread Length 1.2 m Weight 0.70 kilo
Brand: Scout
-
