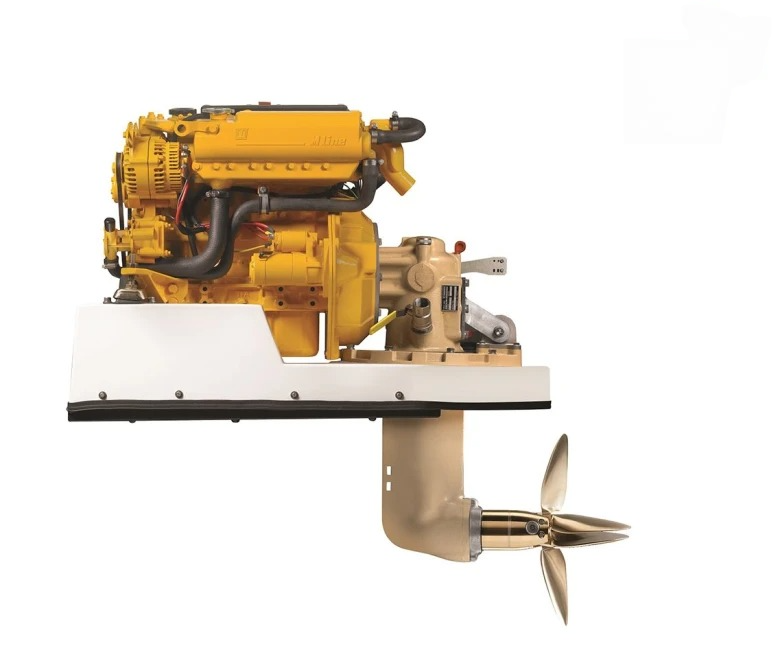

Vetus M329S---A/STM6001 - Mitsubishi M3.29 with SP60 Saildrive i=2.38

Vetus M329S---A - Mitsubishi 27 HP M3.29 Marine Diesel Engine Saildrive Compatible

The Vetus M329S---A Mitsubishi 27 HP M3.29 Marine Diesel Engine is a high-performance, fuel-efficient engine designed for boats with Saildrive systems. Offering 27 horsepower and a high power-to-torque ratio, this 3-cylinder engine delivers exceptional efficiency and reliability for marine applications. It is compatible with STM6001 Saildrive Seaprop 60-1:2.38R, providing smooth and efficient propulsion. This engine features a water-cooled top cover that absorbs and dispels radiant heat, reducing engine room temperatures by up to 20%. Designed for quiet operation, the engine incorporates a cast aluminum top cover and an advanced air filter to reduce engine noise by 5dB(A), ensuring a near-silent experience at 2200 RPM. With HVO approval, it can be powered by more sustainable fuels, significantly lowering emissions by up to 90%. Its high-output marine alternator ensures fast battery recharge, and the engine meets all SOLAS requirements for marine safety.

Key Features:

• Powerful 27 HP engine with a high power-to-torque ratio
• Water-cooled top cover absorbs and dispels radiant heat, reducing engine room temperatures by 15-20%
• Quiet operation with cast aluminum top cover and advanced air filter reducing engine noise by 5dB(A)
• Near-silent operation at around 2200 RPM for a better boating experience
• HVO approved, allowing the use of renewable fuels for reduced emissions (up to 90%)
• Equipped with a high-output marine alternator for fast battery recharging
• Complies with SOLAS marine safety regulations
• Compatible with STM6001 Saildrive Seaprop 60-1:2.38R for efficient propulsion

Specifications:

• Max. Speed (RPM): 3600
• Number of Cylinders: 3
• Max. Torque (Nm): 60.2 Nm @ 2500 RPM
• Power (kW): 20
• Max. Engine Power (HP): 27
• Fuel Type: Diesel, Hydrotreated Vegetable Oil (HVO) compatible
• Cooling System: Water-cooled top cover for heat absorption
• Noise Reduction: 5dB(A) noise reduction for quieter operation
• Alternator Output: 12V 90A marine alternator for fast battery recharge
• Compliance: Meets SOLAS safety regulations and ISO 8846 MARINE standards
• Displacement: 2.9L
• Cylinder Bore x Stroke: 80 mm x 92 mm
• Fuel Tank Capacity: 75L (recommended)
• Engine Dimensions (L x W x H): 800 mm x 480 mm x 700 mm
• Weight: 200 kg (without Saildrive)
• Oil Capacity: 6L
• Engine Type: 4-stroke, inline diesel engine
• Marine Gearbox: ZF-2.38R (optional for integrated system)

Compatibility and Application:

The Vetus M329S---A 27 HP M3.29 Marine Diesel Engine is ideal for use in sailboats, yachts, and other marine vessels requiring a reliable, efficient, and compact propulsion solution. Its compatibility with the STM6001 Saildrive Seaprop 60-1:2.38R ensures smooth and efficient propulsion for long-distance sailing and cruising. The engine is built to handle varying marine conditions, offering smooth operation and a quiet boating experience. Its compatibility with Hydrotreated Vegetable Oil (HVO) makes it an environmentally-friendly choice for boaters seeking to reduce their carbon footprint, while still maintaining high performance. Additionally, the engine meets stringent safety standards, including SOLAS, ensuring it is suitable for commercial and recreational marine applications.

Benefits:

• High power-to-torque ratio, providing strong acceleration and efficient cruising
• Quiet operation with noise-reduction features for a peaceful boating experience
• Advanced water-cooling system for reduced engine room temperatures by 15-20%
• HVO compatibility for sustainable fuel use and lower emissions
• Equipped with a high-output marine alternator for rapid battery charging
• Complies with all SOLAS marine safety standards and ISO certifications
• Compact and lightweight design for easier integration in tight engine rooms
• Fast and smooth propulsion with STM6001 Saildrive Seaprop 60-1:2.38R system
• Environmentally friendly fuel options available to reduce CO2 and other harmful emissions by up to 90%
• Efficient 4-stroke, inline design for longer operational life and less maintenance
• Complete engine package including optional gearbox integration for easy installation
