Jabsco Q401J-118S-3A - Par Max HD 4' Pressure-Controlled Pump

Jabsco Q401J-118S-3A - Par Max HD 4' Pressure-Controlled Pump 12V

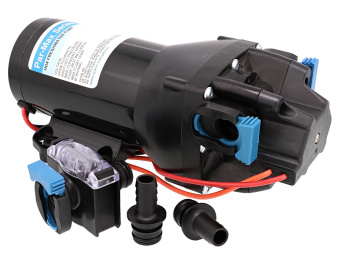

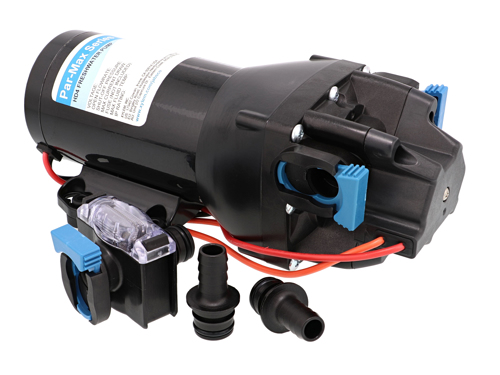

The Jabsco Q401J-118S-3A Par Max HD 4' Pressure-Controlled Pump is a robust and efficient 12V DC diaphragm pump engineered for high-pressure applications in marine, RV, and industrial systems. With a maximum output of 15 liters per minute (4 GPM) and a pressure range of 40-60 PSI (2.8-4.1 bar), it ensures reliable water transfer and pressure control. Its multi-diaphragm design allows self-priming up to 2.4 meters (7.8 feet) vertical lift and dry running without damage, providing versatility in various installations. The heavy-duty motor and cast aluminum lower housing guarantee long-lasting performance, even under high-pressure conditions. Perfect for systems with multiple outlets, it operates quietly and is protected by a thermal overload cut-out for added safety.

Key Features

• 12V DC operation for optimal energy efficiency in diverse systems.
• Output of 15 liters per minute (4 GPM) for high-performance water flow.
• Pressure switch cuts out at 4.1 bar (60 PSI) to regulate water pressure effectively.
• Self-priming up to 2.4 meters (7.8 feet) vertical lift, perfect for a wide range of installations.
• Multi-diaphragm design enables dry running without causing damage to the pump.
• Quiet operation reduces noise pollution in sensitive environments.
• Heavy-duty (HD) motor with cast aluminum lower housing ensures durability and longer life even at high pressures.
• Thermal overload protection keeps the motor safe and prevents overheating during operation.
• IPX6 water-resistant rating for use in wet and harsh environments, including marine and RV applications.
• Supplied with snap-in ports for easy installation of 13mm (½”) hose and includes a built-in strainer for reliable filtration.
• Fluid temperature range of 32°F to 140°F (0°C to 60°C) ensures reliable operation in varying conditions.

Specifications

• Voltage: 12V DC
• Maximum Output: 15 liters/min (4 GPM) open flow
• Pressure Switch: Cuts out at 4.1 bar (60 PSI)
• Connections: 13mm (½”) bore hose
• Fuse Size: 20 amp
• Maximum Current: 12 amps
• Dimensions: 239mm long x 109mm wide x 97mm high
• Weight: 2.50 kg (approx. 3.00 kg packed)
• Self-Priming: Up to 2.4 meters (7.8 feet) vertical lift
• Maximum Operating Pressure: 60 PSI (4.1 bar)
• Motor Type: Heavy-duty motor with cast aluminum lower housing
• Water Resistance: IPX6 rating for water resistance
• Fluid Temperature Range: 32°F to 140°F (0°C to 60°C)
• Noise Level: Low noise for quieter operation
• Packaged Dimensions: L: 40.00 x H: 14.00 x W: 15.00 cm
• Mounting: Horizontal or vertical mounting options
• Strainer: Built-in strainer for filtration
• Application: Suitable for use in marine, RV, industrial, and water transfer systems

Applications

The Jabsco Q401J-118S-3A Par Max HD 4' Pressure-Controlled Pump is designed for high-pressure applications in a wide range of industries. Ideal for marine water systems, RV water systems, and industrial water transfer, it provides reliable water flow and pressure control. Its self-priming ability, dry running capabilities, and high-flow design make it perfect for systems with multiple outlets. Whether you need a water transfer solution, pressure regulation, or a reliable pump for seawater systems, this pump offers versatility and durability to meet demanding requirements.

Benefits

• Delivers consistent and reliable water pressure and flow, ensuring optimal system performance.
• Self-priming up to 2.4 meters (7.8 feet) vertical lift, perfect for diverse installation configurations.
• Can run dry without damaging the pump, offering enhanced reliability in various conditions.
• Durable construction with a heavy-duty motor and cast aluminum housing ensures long life and reliability even under high-pressure conditions.
• Thermal overload protection prevents motor failure due to overheating, ensuring safety and protection.
• Water-resistant (IPX6) design makes it ideal for use in wet or harsh environments, including marine applications.
• Easy installation with snap-in ports and strainer included for clean, reliable water delivery.
• Low-noise operation makes it suitable for noise-sensitive environments.
