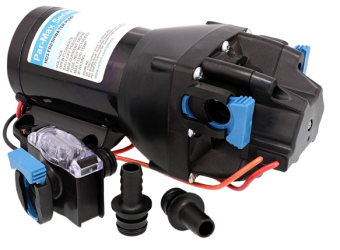

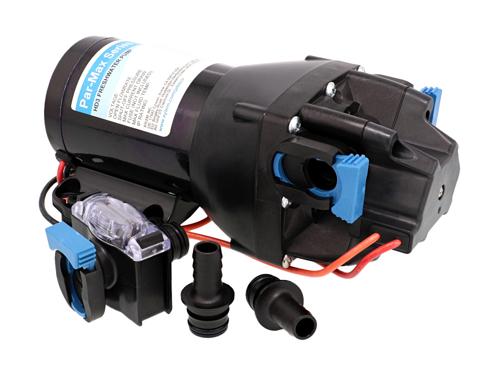

Jabsco Q301J-118S-3A - Par Max HD3' Pressure-Controlled Pump 12V

Jabsco Q301J-118S-3A - Par Max HD3' Pressure-Controlled Pump 12V

The Jabsco Q301J-118S-3A Par Max HD3' Pressure-Controlled Pump is a high-performance 12V DC pump designed for demanding marine, RV, and industrial applications. With a maximum output of 11 liters per minute (3 GPM) and a pressure switch that cuts in at 40 PSI (2.8 bar) and cuts out at 60 PSI (4.1 bar), this pump ensures optimal water pressure control. The pump’s self-priming ability, up to 2.4 meters (7.8 feet) vertical lift, and dry-running capabilities make it a versatile and reliable solution for a variety of systems. Ideal for multiple outlets, this heavy-duty pump operates quietly and comes with a thermal overload protection feature for added durability.

Key Features

• 12V DC operation for efficient power use in a variety of systems.
• Maximum output of 11 liters per minute (3 GPM) for reliable water transfer.
• Pressure switch that cuts in at 2.8 bar (40 PSI) and cuts out at 4.1 bar (60 PSI) for consistent water pressure control.
• Multi-diaphragm design ensures high flow and the ability to run dry without damage.
• Self-priming up to 2.4 meters (7.8 feet) vertical lift, making it ideal for systems with multiple outlets or elevated installations.
• Quiet operation reduces noise during use, ideal for environments where noise is a concern.
• Motor is protected by automatic thermal overload cut-out for enhanced longevity and safety.
• Supplied with snap-in ports for easy connection of 1/2" (13mm) hose and a strainer for reliable filtering.
• Heavy-duty motor and cast aluminum lower housing designed for extended life under high-pressure operations.
• Compact size for easy installation in confined spaces, allowing flexibility in various setups.

Specifications

• Voltage: 12V DC
• Maximum Output: 11 liters/min (3 GPM) open flow
• Pressure Switch: Cuts in at 2.8 bar (40 PSI), cuts out at 4.1 bar (60 PSI)
• Connections: 13mm (½”) bore hose
• Fuse Size: 15 amp
• Dimensions: 220mm long x 109mm wide x 100mm high
• Weight: 2.47 kg (approx. 2.97 kg packed)
• Self-Priming: Up to 2.4 meters (7.8 feet) vertical lift
• Maximum Operating Pressure: 60 PSI (4.1 bar)
• Flow Rate: 11 liters/min (3 GPM) open flow
• Motor Protection: Thermal overload cut-out for enhanced protection
• Motor Type: Heavy-duty motor with cast aluminum lower housing
• Water Resistance: IPx6 rating for water resistance
• Continuous Duty Cycle: Capable of continuous operation under high-pressure conditions
• Packaged Dimensions: L: 40.00 x H: 14.00 x W: 16.00 cm
• Noise Level: Below 70 dB during operation

Applications

The Jabsco Q301J-118S-3A Par Max HD3' Pressure-Controlled Pump is perfect for use in marine water systems, RV water pumps, agricultural irrigation, and other industrial fluid handling applications. Its ability to self-prime, run dry without damage, and provide high-pressure water flow makes it a reliable choice for systems requiring continuous water delivery, such as cooling systems, bilge systems, and general water transfer tasks. Its heavy-duty design and water resistance also make it suitable for harsh environments and seawater use.

Benefits

• Ensures efficient and reliable water delivery with high-pressure control for demanding applications.
• Self-priming and dry-running capabilities enhance durability, reducing the risk of damage.
• Quiet running motor for noise-sensitive applications, ideal for marine and RV setups.
• Heavy-duty construction and motor protection increase the lifespan and reliability of the pump.
• Water-resistant (IPx6) design ensures functionality in wet or marine environments.
• Easy installation with snap-in ports and included strainer for added convenience.
• Durable cast aluminum lower housing and motor provide robust performance under high pressure.
