The Jabsco 6400-1051 flexible-impeller engine cooling pump delivers durable bronze construction with a neoprene impeller for water and general-purpose pumping, providing a nominal flow rate of 235 litres/min (62 gallons/min) at 1750 rpm. It primes at low or high speeds and supports vertical dry suction lift up to 22 feet (6.7 m) when wetted, with 1-1/4 inch NPT internal ports and a carbon/ceramic mechanical seal for reliable service. Designed as a short-shaft pump end for Caterpillar engines, it can be mounted at any angle and pump in either direction, while requiring liquid lubrication (do not run dry for more than 30 seconds) and observing operating limits of 45°F to 180°F (7°C to 82°C) and 30 psi maximum continuous pressure.
- Description
- Ask a Question
-

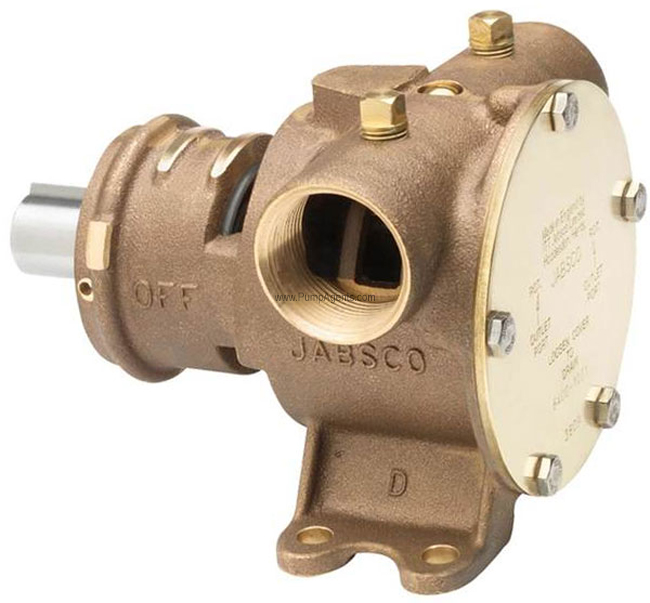

Jabsco 6400-1051 Flexible Impeller Engine Cooling Pump Unit
The Jabsco 6400-1051 is a bronze, flexible-impeller engine cooling pump built for marine duty and general-purpose liquid transfer. With a neoprene impeller, it supports efficient engine cooling and circulation while offering strong self-priming capability and flexible installation options.
Application
- Engine cooling
- Washdown
- Circulation
- General-purpose pumping
- Bilge pumping
- Water circulation
- Transferring liquids
Compatibility
- Short-shaft configuration for Caterpillar engines
Technical Specifications
Catalog Number 6400-1051 Pump Type Flexible impeller engine cooling pump (bare shafted pedestal pump end only) Construction Bronze body; marine quality bronze and stainless steel Impeller Material Neoprene Shaft Seal Carbon/ceramic mechanical seal Port Size 1-1/4 inch NPT internal ports Nominal Flow Rate 235 litres/min (62 gallons/min) at 1750 rpm Priming / Suction Lift Vertical dry suction lift of 10 feet (3.0 m) requires a minimum of 800 rpm; up to 22 feet (6.7 m) when wetted Temperature Limits (Neoprene Impeller) 45°F to 180°F (7°C to 82°C) Maximum Continuous Pressure 30 psi Intermittent Pressure Range 35 to 50 psi with 807-1001 high pressure impeller plus an extra gasket Bearing Double row ball bearing
Product Details
- Self-priming: Primes at low or high speeds; suction lines must be airtight for self-priming performance.
- Bidirectional pumping: Pumps in either direction with equal efficiency; pump shaft rotation determines intake and discharge port location.
- Factory configuration: Normally assembled for clockwise rotation (looking at the end cover).
- Lubrication note: Depends on the pumped liquid for lubrication; do not run dry for more than 30 seconds to avoid damage.
- Fluid note: Neoprene impeller is suitable for water and general-purpose pumping; if there is oil in the water, use a nitrile impeller (see parts list).
Features
- Bronze construction for durability in marine environments
- Mechanical seal design
- Can be mounted at any angle
- Handles hard and soft solids without clogging
- Will not airlock
- Easy to service and maintain
- Will tolerate abrasive wear
Spare Parts Available
- Major Overhaul Kit / Rebuild Kit: Catalog 90062-0001, Service Kit, Neoprene, with Neoprene impeller, O-ring and seal
- Impeller: Catalog 17935-0001, Impeller, Neoprene
- Shaft Seal: Catalog 6407-0010, Service Kit, Neoprene, with Neoprene impeller, O-ring and seal
-
